| Brand Name: | Youwei |
| Model Number: | YW-1612Z1 |
| MOQ: | 200 |
| Price: | CN¥36.21/units 1-99 units |
| Delivery Time: | 5-8 Works |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram Paypal |

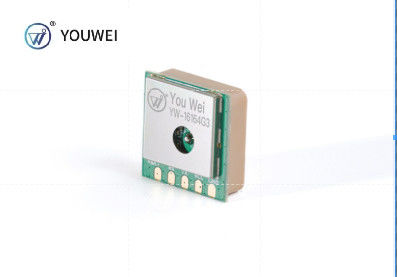

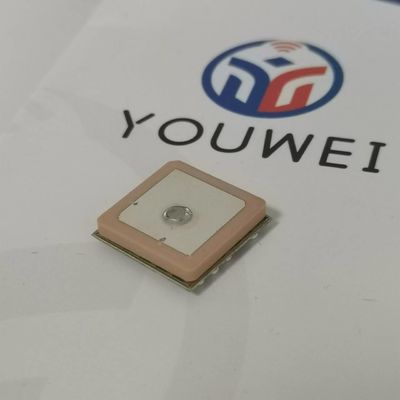

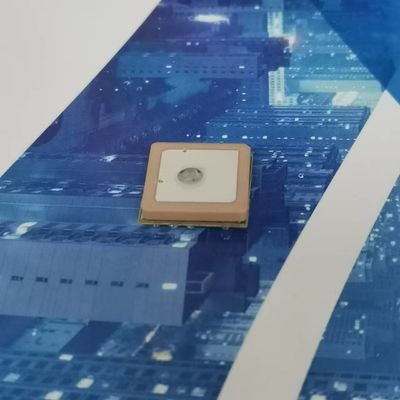

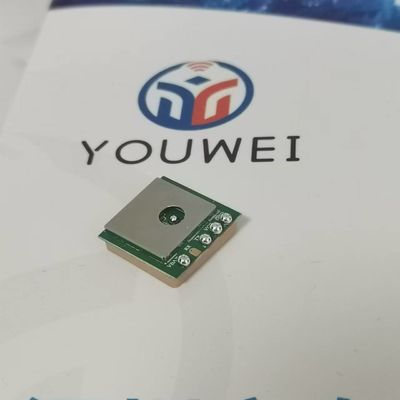

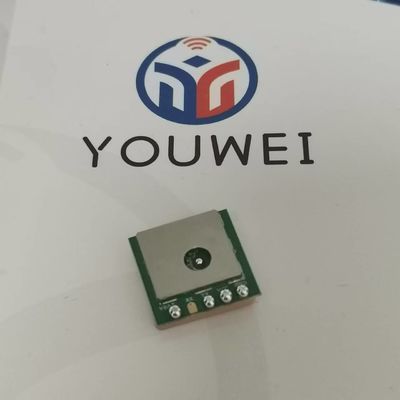

China Wholesale Dual-Frequency Gps Module YW-1612Z1 Module Gps Module Gps Gnss
1.Product Description
Featuring a single die solution, low power consumption and low costs, the YW-16162G3 are multi-Beidou ,positioning Module developed to meet the requirements of an extensive range of applications and end-products. Based on the high performance GK9501 position engine,these receivers provide exceptional sensitivity and acquisition times and interference suppression measures enable reliable positioning even in difficult signal conditions.
2.Product Application
| • | Handheld BD receiver application | • | Automotive application |
| • | Ideal for PDA, Pocket PC | • | Car navigation and tracking |
| • | Geographic Surveying | • | AVL and Location-Based Services |
| • | Sports and Recreation | • | Timing application |
| • | Marine Navigation, Fleet Management | • | UAV |
3.Performance
| Parameter | Specification | |||||
| □GPS L1 C/A | ■SBAS L1 C/A | □QZSS L1 C/A | ||||
| Receiver type | ||||||
| □GLONASS L1OF | ■BeiDou B1 | □Galileo E1B/C² | ||||
| Tracking & Navigation: | -162dBm | |||||
| Sensitivity | Reacquisition: | -160dBm | ||||
| Cold Start: | -147dBm | |||||
| Cold Start | 30 s | |||||
| Time-To-First-Fix¹ | Warm Start | 28 s | ||||
| Hot Start | 1 s | |||||
| Autonomous | 2.5 m | |||||
| Horizontal Position accuracy² | ||||||
| SBAS | 2.0 m | |||||
| Accuracy of time pulse signal | RMS | 25 ns | ||||
| Velocity accuracy | 0.1 m/s | |||||
| Dynamics | ≤ 4 g | |||||
| Operational limits³ | Altitude | 18000 m | ||||
| Velocity | 515 m/s | |||||
| Frequency of time pulse signal | 0.25 Hz … 10 MHz | |||||
| Baud Rate | 9,600 bps (Default) | |||||
| Max navigation update rate | 1 Hz (Default 1Hz) | |||||
4.Block Diagram
5.Shipment
6.Certification
Video
Video
|
|
