| Brand Name: | YOUWEI |
| Model Number: | YW-25252Z1 |
| MOQ: | 100 |
| Delivery Time: | 5-7 WORK DAY |
| Payment Terms: | T/T |

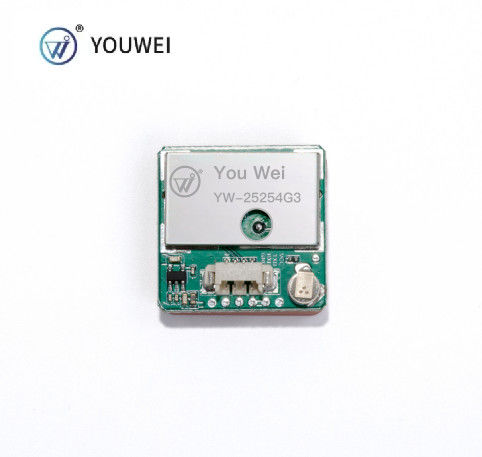

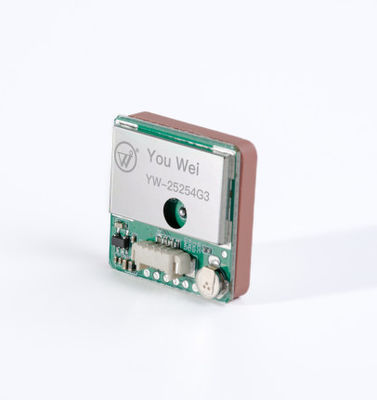

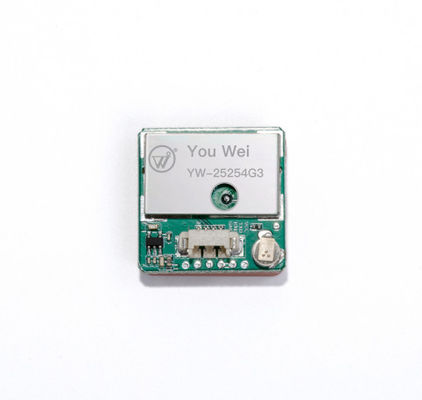

GPS Module High-Performance Navigation For Business In Industrial Settings
1.1 Product Name
YW-25252Z1
1.2 Product Description
Featuring a single die solution, low power consumption and low costs, the YW-25254Z1 are multi-
GPS/GNSS (GPS, Beidou,GLONASS, Galileo and QZSS and SBAS) positioning Module developed to meet the
requirements of an extensive range of applications and end-products. Based on the high performance
AT6558 position engine,these receivers provide exceptional sensitivity and acquisition times and
interference suppression measures enable reliable positioning even in difficult signal conditions.
1.3 Product Features
• Build on high performance GNSS single chip AT6558R
• 72 channels in Search mode
• cold start acquisition sensitivity of -147 dBm and -162 dBm tracking sensitivity
• up to 5Hz navigation update rate
• Supports any two of GPS/QZSS, Beidou,GLONASS, Galileo,SBAS simultaneously by firmware support
• Supports AGPS
• Integrated TCXO,LNA,SAW,RTC
Compact size (25.1mm*25.1mm.*8.8mm±0.1) suitable for space-sensitive application
• Support standard NMEA
1.4 Product Application
• Handheld GPS receiver application
• Automotive application
• Ideal for PDA, Pocket PC
• Car navigation and tracking
• Geographic Surveying
• AVL and Location-Based Services
• Sports and Recreation
• Timing application
• Marine Navigation, Fleet Management
• UAV
Video
Video
|
|
