Highly Sensitive Gps Tracking Module For Precise Positioning And Tracking

Name: Highly Sensitive Gps Tracking Module For Precise Positioning And Tracking
Brand: Shenzhen Youwei Communication Co., Ltd.
SKU: YW15134G3
Price: 38.00 USD
Availability: InStock

Brand Name:	YOUWEI
Model Number:	YW15134G3
MOQ:	100
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE Rohs

Type:

GNSS Module

Country Of Origin:

China

Brand:

Youwei

Chipset:

YW15134G3

Application:

Gnss Module

Product Name:

YOUWEI

Chip:

YW15134G3

Payment:

Paypal\TT\Western Union\Trade Assurance

Feature:

Band

D/C:

Newest

Battery:

Internal Back-up Battery

Operating Temperature Range:

-40 To 85℃C

Description:

GNSS Module

Cetificate:

ISO9001

Packaging Details:

Hard box packaging size

Supply Ability:

10000

Highlight:

Highly Sensitive Gps Tracking Module

Highly Sensitive ublox gps module

Gps Tracking Module For Precise Positioning

Product Description

Highly Sensitive GPS Module for Precise Positioning and Tracking in Navigation Systems

1.1 Product Name

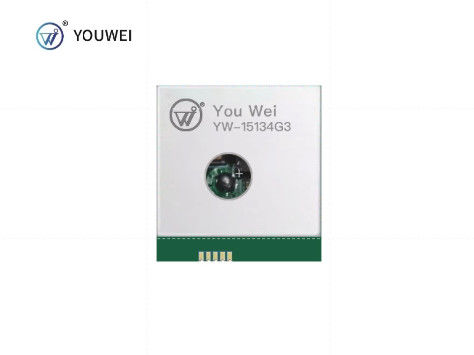

YW-15134G3

1.2 Product Description

Featuring a single die solution, low power consumption and low costs, the YW-15134G3 are multi-

GPS/GNSS (GPS, Beidou,GLONASS, Galileo and QZSS and SBAS) positioning Module developed to meet the

requirements of an extensive range of applications and end-products. Based on the high performance

KG9501 position engine,these receivers provide exceptional sensitivity and acquisition times and

interference suppression measures enable reliable positioning even in difficult signal conditions.

1.3 Product Features

• Build on high performance GNSS single chip KG9501

• 72 channels in Search mode

• cold start acquisition sensitivity of -147 dBm and -162 dBm tracking sensitivity

• up to 5Hz navigation update rate

• Supports any two of GPS/QZSS, Beidou,GLONASS, Galileo,SBAS simultaneously by firmware support

• Supports AGPS

• Integrated TCXO,LNA,SAW,RTC

• Compact size (15.3mm x 13.2mm x6mm±0.2mm ) suitable for space-sensitive application

• Support standard NMEA

1.4 Product Application

• Handheld GPS receiver application

• Automotive application

• Ideal for PDA, Pocket PC

• Car navigation and tracking

• Geographic Surveying

• AVL and Location-Based Services

• Sports and Recreation

• Timing application

• Marine Navigation, Fleet Management

• UAV
