| Brand Name: | Youwei |
| Model Number: | M38 |
| MOQ: | 200 |
| Price: | CN¥57.93/acres 1-99 acres |
| Delivery Time: | 5-8 Works |
High Quality Youwei Precise Positioning GPS Tracker Support Mobile APP Mini GPS Tracker
1.Features
5V voltage
Real-time positioning tracking, trajectory playback
Support electronic fence alarm
Ultra-small size
Easy installation, no need to press the power button, work immediately after power on
Built-in backup battery
GPS+Beidou+GLONASS triple positioning
2.Product Structure Description
3.Product Parameters
| Specifications | Specifications |
| Size | 42mm*20mm |
| Weight | 26.5g (including battery) |
| Built-in battery | 5000mAH (optional battery) |
| Operating temperature | -20°C to+60°C |
| Storage temperature | -20°C to+70°C |
| Main chip | 4G Cat1 module |
| Frequency band | 2320-2370MHz/2575-2635MHz |
| SIM card | China Mobile 4G patch card |
| Root mean square error | S degrees |
| Maximum output power |
2320-2370:28.0 ±2dbm 2575-2635:28.0 ±2dbm |
| 2575-2635:28.0 ±2dbm | 2575-2635:28.0 ±2dbm |
| Dynamic output range | -15~-108dbm |
| Receiver sensitivity | -107dbm |
| Maximum frequency error | ±0.1ppm |
| Sensitivity Cold start: | -145dbm |
| Hot start: | -156 dbm |
| Warm start: | -145 dbm |
| Navigation: | -160 dbm |
| Tracking: | -162 dbm |
| Positioning accuracy m | ＜5m |
| First positioning time Cold start: | 32 seconds on average |
| GSM antenna | Built-in |
| GPS antenna | Built-in |
| Transmission protocol | MQTT communication protocol |
| Power detection | Upload alarm information when the main power is disconnected |
| Data reporting | Real-time update of GPS data and support for customer customization |
| Electronic fence | TBD |
| GPS data | Real-time positioning update |
| Status indicator | Blue light |
| Charging | Magnetic charging/TYPE-C |
| Switch | Long press 3sm |
| Upgrade | Remote OTA |
4.APP Download
1. Scan the QR code to download
2. For iPhone, go to the App Store and search for Roadcamplus. For Android, go to App Store and search for Roadcamplus

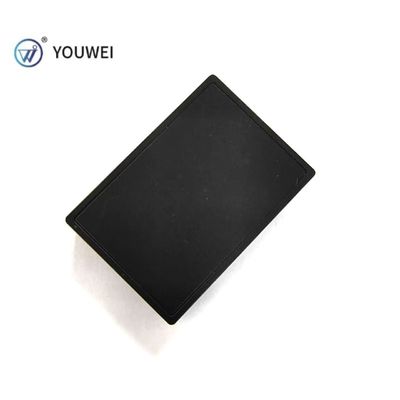

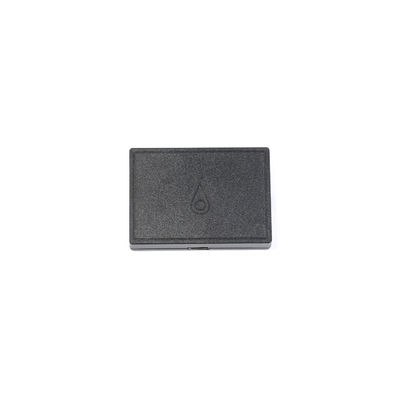

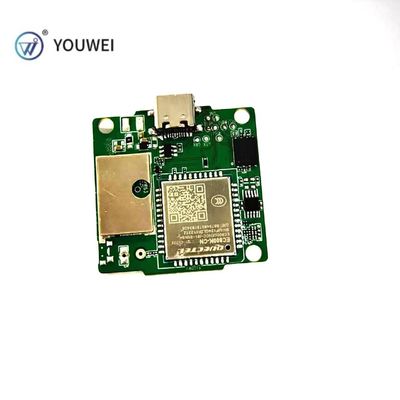

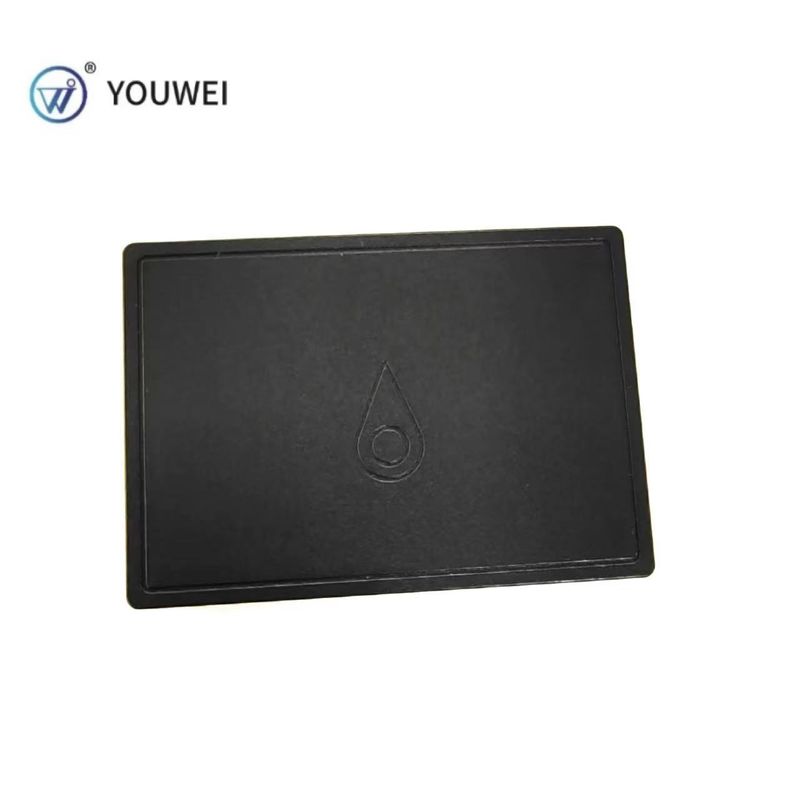

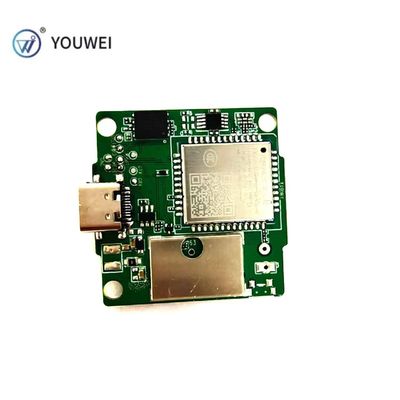

5.Products real image
6.Certification
Video
|
|
