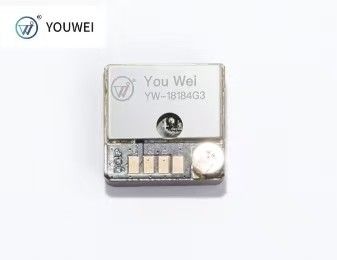

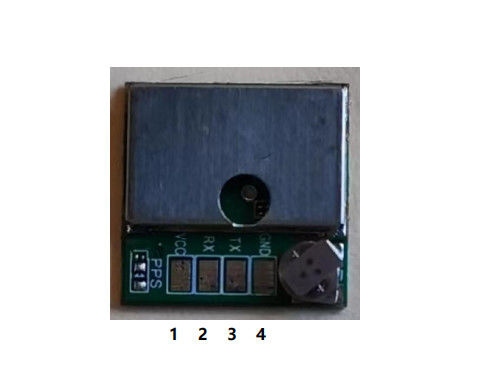

Lightweight 3.3-5.0V Embedded Gps Module With CE Certification

Name: Lightweight 3.3-5.0V Embedded Gps Module With CE Certification
Brand: Shenzhen Youwei Communication Co., Ltd.
SKU: YW18184Z3
Price: 4.00 USD
Availability: InStock

Brand Name:	Youwei
Model Number:	YW18184Z3
MOQ:	100
Price:	USD 3.0-5.0 Unit
Delivery Time:	6-10 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE，Rohs

Type:

GNSS Module

Country Of Origin:

China

Brand:

Youwei

Chipset:

AT6558,AT6558F,AT6558R,AT6668B

Application:

Gnss Module

Product Name:

YOUWEI

Chip:

YW18184Z3

Payment:

Paypal\TT\Western Union\Trade Assurance

Feature:

Band

D/C:

Newest

Battery:

Internal Back-up Battery

Operating Temperature Range:

-40 To 85℃C

Description:

GNSS Module

Cetificate:

ISO9001

Supply Voltage:

DC 3.3-5.0V

Packaging Details:

PE Bag Cartons

Supply Ability:

200000 PCS MONTH

Highlight:

Lightweight 3.3 v gps module

Lightweight embedded gps module

embedded gps module With CE Certification

Product Description

International Antenna Car Recorder Vehicle Navigation System Gps Tracking Receiver Module

1.Product Feature

• Build on high performance GNSS single chip AT6558R
• 72 channels in Search mode
• cold start acquisition sensitivity of -147 dBm and -162 dBm tracking sensitivity
• up to 5Hz navigation update rate
• Supports any two of GPS/QZSS, Beidou,GLONASS, Galileo,SBAS simultaneously by firmware support
• Supports AGPS
• Integrated TCXO,LNA,SAW,RTC
• Compact size (18.1mm x 18.1mm x6.2mm±0.1mm ) suitable for space-sensitive application
• Support standard NMEA

2.Product Application

• Handheld GPS receiver application

• Automotive application

• Ideal for PDA, Pocket PC

• Car navigation and tracking

• Geographic Surveying

• AVL and Location-Based Services

• Sports and Recreation

• Timing application

• Marine Navigation, Fleet Management

• UAV

3.Antenna

The YW-18184Z1 module are designed for use with passive and active antennas.

18.1*18.1*6.2mm

Minimum gain

15 dB (to compensate signal loss in RF cable)

Active Antenna Recommendations

Maximum gain

30 dB

Maximum noise figure

1.5 dB

4.Product details

5.Shipping

6.Certification
