| Brand Name: | YOUWEI |
| Model Number: | YW-D09 |
| MOQ: | 10 |
| Price: | USD 6-9 UNIT |
| Delivery Time: | 5-7 business days |
| Payment Terms: | T/T, Western Union, MoneyGram, D/A, L/C, Paypal |

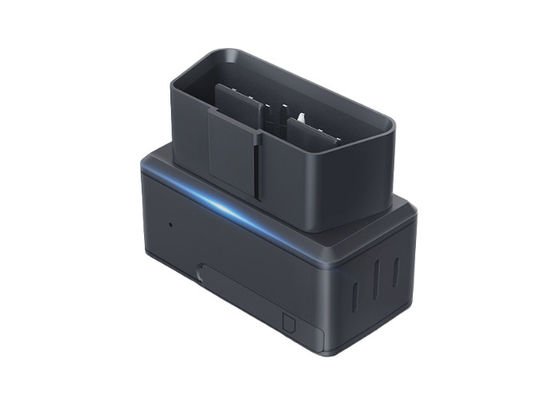

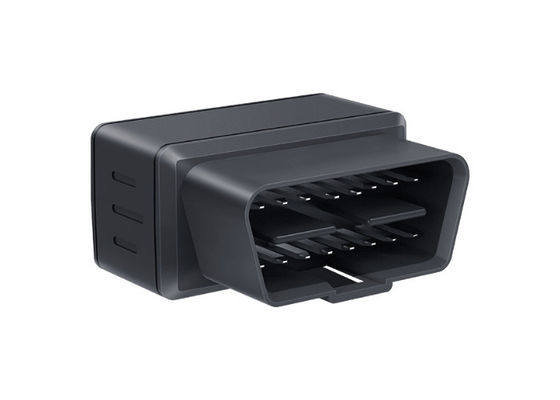

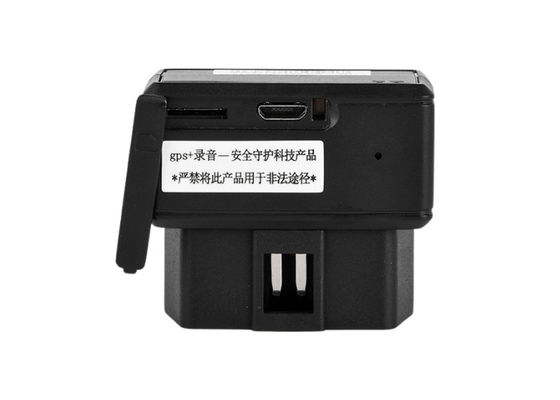

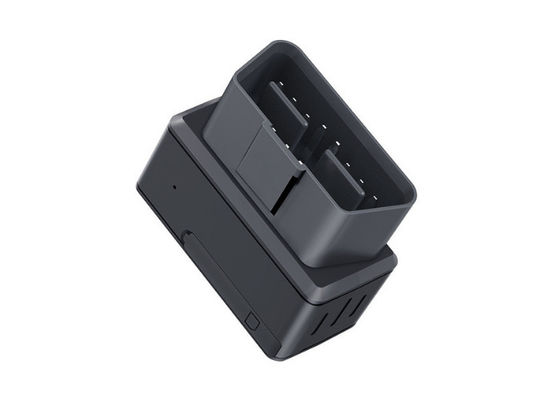

The OBD Smart Global GPS Tracker is a high-performance, plug-and-play tracking device designed for both personal and fleet use. Featuring an automotive-grade chip and multi-mode positioning (GPS/BDS/LBS), it delivers real-time location updates with zero installation effort. Compatible with 100+ languages and global maps, it ensures seamless anti-theft protection, fleet management, and vehicle monitoring.
Key Features
Real-Time GPS Tracking: 0.5s refresh rate with no blind zones.
Multi-Mode Positioning: Combines GPS, BeiDou, and LBS for 24/7 coverage.
Smart Geo-Fencing: Customizable zones (circle/polygon/city) with instant alerts (APP/SMS/voice).
Anti-Theft Alarms: Vibration, power-cut, speeding, and tamper detection alerts.
OBD-Powered: No charging/wiring; draws power from the vehicle’s OBD-II port (9-36V DC).
Tool-Free Installation: Install in seconds without professional help.
Historical Route Playback: Review timestamps, speed, and停留时长.
Fleet Analytics: Track mileage (total/segmented), idle time, and driver behavior.
Multi-Language Platform: Supports 100+ languages for global users.
Automotive-Grade Chip: Operates in -40°C to +80°C.
Compact Size: 46×39×23mm, discreetly fits all vehicles.
Technical Specifications
| Parameter | Details |
| Model | D08(2G); D09(4G) |
| Power Source | OBD-II port (9-36V DC) |
| Positioning | GPS + BeiDou + LBS + GLONSS + AGPS |
| Frequency Bands |
850/900/1800/1900 MHz (2G) LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/B40/B41 (4G) As per order |
| Battery | 300mAh backup (OBD-powered) |
| Operating Temp. | -40°C to +80°C |
| Dimensions | 46×39×23mm |
| Weight | 32g (device only) |
| Communication | 2G or 4G LTE (SIM card supported) |
| Alarm Types | Vibration, geo-fence, speeding, power-loss |
| GPS |
Reacquisition sensitivity: - 160 DBM Tracking sensitivity: - 162 DBM Positioning accuracy: < 10 m Cold start: ≤32s |
Applications
Fleet Management: Monitor routes, fuel usage, and driver performance.
Anti-Theft: Real-time alerts for unauthorized movement.
Rental Vehicles: Track usage and set speed limits.
Personal Use: Find parked cars via one-touch navigation.
Included Accessories
OBD GPS Tracker ×1
Charging cable (optional) ×1
User Manual ×1
SIM Card (optional) ×1
Cardboard Box x1
|
|
