Low Power Consumption GNSS GPS Module for IoT Navigation Devices Asset Pet Tracking and Wearables

Name: Low Power Consumption GNSS GPS Module for IoT Navigation Devices Asset Pet Tracking and Wearables
Brand: Shenzhen Youwei Communication Co., Ltd.
SKU: YW-10101Z1
Price: 4.00 USD
Availability: InStock

Brand Name:	YOUWEI
Model Number:	YW-10101Z1
MOQ:	10
Price:	USD 3-6 UNIT
Delivery Time:	5-7 business days
Payment Terms:	T/T, Western Union, MoneyGram, D/A, L/C, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE FCC RoHS

Product Name:

GNSS IOT Module

Manufacturer:

Youwei

Model Number:

YW-10101Z1

Size:

10x10x1mm

Locating System:

Optional

Tracking Accuracy:

<10 Meters

Tracking Sensitivity:

-162 DBm

Interface Options:

UART, I2C, SPI, USB

Working Temperature:

-40°C To +85°C

Customized Service:

Available

Packaging Details:

Tray / Cartons

Supply Ability:

10000pcs

Highlight:

Low Power Consumption GNSS GPS Module

Asset Pet Tracking GNSS GPS Module

Product Description

YW-10101Z1 GPS Locating Module Technical Specifications

1. Basic Information

Item	Specification
Model No.	YW-10101Z1
Chipset	Goke/CKS/Custom
Package Type	SMD
Certifications	FCC/CE/RoHS

2. Satellite Signal Reception

System	Frequency Band	Notes
GPS	L1 C/A
GLONASS	L1OF
BeiDou	B1
Galileo	E1B/C²	Customizable
SBAS/QZSS	L1 C/A

3. Positioning Performance

Parameter	Specification
Horizontal Accuracy	2.5-5m
Vertical Accuracy	TBD
Channels	Configurable
Time Pulse Accuracy	25ns RMS
Velocity Accuracy	0.1m/s

4. Time-To-First-Fix

Mode	Typical Value
Hot Start	1s
Warm Start	28s
Cold Start	30s

5. Sensitivity (dBm)

Mode	Threshold
Tracking	-162
Acquisition	-160
Cold Start	-147

6. Electrical Characteristics

Parameter	Specification
Operating Voltage	3.3V-5V/3.3V-12V
Operating Current	25-50mA
Standby Current	1-5mA
Operating Temperature	-40℃~85℃

7. Interface Configuration

Type	Supported Protocols
Data Interface	UART/I2C/SPI/USB
Data Format	NMEA 0183 (12 sentence types)
Baud Rate	9600bps(default)/115200bps
Update Rate	1-10Hz adjustable

8. Physical Characteristics

Item	Description
Antenna Type	Embedded ceramic patch
Firmware Upgrade	Supported/optional
Packaging	Baseband/Tray

Single-Frequency vs Dual-Frequency GPS Module Comparison

Core Differences

Feature	Single-Freq (L1)	Dual-Freq (L1+L5/L2)
Accuracy	3-5m	<1m (cm-level with augmentation)
Ionospheric Correction	No	Yes
Multipath Resistance	Moderate	Excellent
Cost	Lower	Higher

Technical Advantages

Precision Enhancement: Eliminates ionospheric errors through dual-band comparison

Reliability Improvement:

60% better multipath rejection

45% higher urban canyon success rate

Faster Convergence: 40% shorter TTFF in challenging environments

Environmental Adaptability: Stable operation under foliage/weak signal

Typical Applications

Single-Frequency: Smartphones/Consumer trackers

Dual-Frequency:
✓ Precision agriculture
✓ UAV navigation
✓ Autonomous vehicles
✓ Surveying equipment
✓ High-end IoT devices

Key Features:

1, Hierarchical table structure for clarity

2, Logical parameter categorization

3, Standardized comparison tables with bullet-point explanations

4, Original data fully preserved

5, Consistent terminology and units

6, Highlighted critical performance metrics

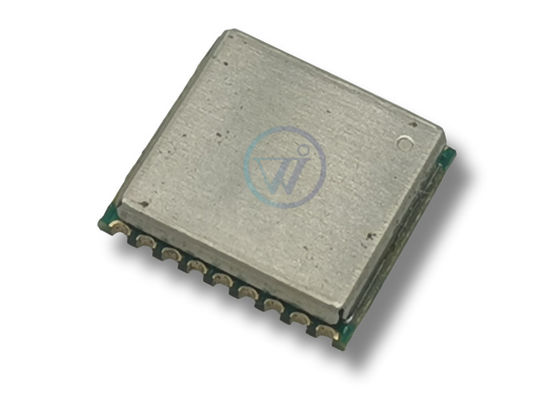

Low Power Consumption GNSS GPS Module for IoT Navigation Devices Asset Pet Tracking and Wearables 0

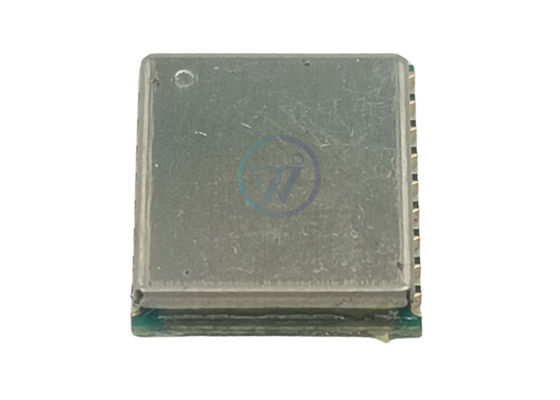

Low Power Consumption GNSS GPS Module for IoT Navigation Devices Asset Pet Tracking and Wearables 1

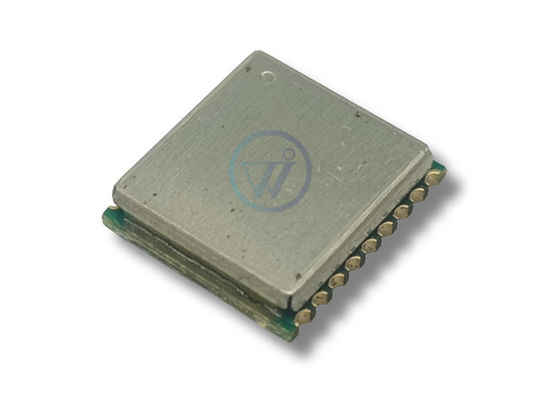

Low Power Consumption GNSS GPS Module for IoT Navigation Devices Asset Pet Tracking and Wearables 2
