| Brand Name: | YOUWEI |
| Model Number: | YW-15134Z3 |
| MOQ: | 10 |
| Price: | USD 4-6 UNIT |
| Delivery Time: | 5-7 business days |
| Payment Terms: | T/T, Western Union, MoneyGram, D/A, L/C, Paypal, Alibaba Pay |
Key Features and Benefits of Youwei GPS Modules
1, Superior Signal Acquisition
Maintains reliable satellite tracking even in low-signal conditions
2, Multi-Channel Processing
Simultaneous reception from multiple satellites through parallel channels enhances both positioning precision and acquisition speed
3, Rapid Initialization
Optimized start-up performance with:
Instant hot-start capability
Efficient warm-start recovery
Reliable cold-start initialization
4, High-Accuracy Positioning
Delivers precise geolocation data with both horizontal and vertical position reporting
5, Power Efficiency
Advanced power management maintains operational performance while maximizing battery life
6, Environmental Robustness
Consistent operation across extreme temperature ranges
7, EMI Resistance
Stable signal reception maintained in electromagnetically challenging environments
8, Multipath Mitigation
Specialized algorithms minimize positioning errors caused by signal reflections
9, Global System Compatibility
Full support for all major GNSS constellations:
GPS (U.S.)
GLONASS (Russia)
Galileo (EU)
BeiDou (China)

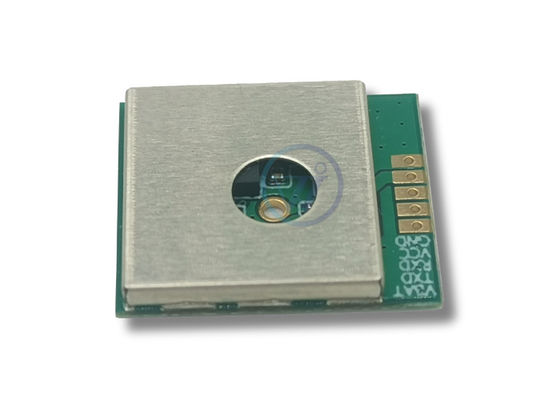

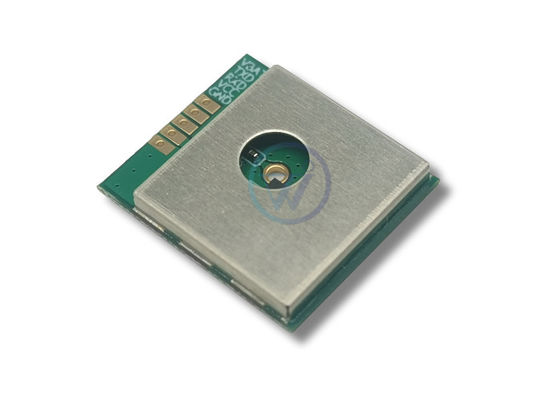

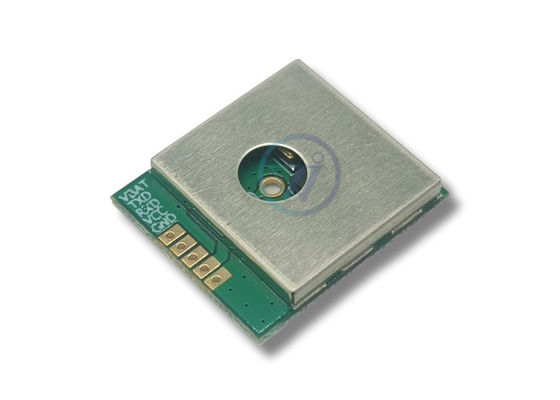

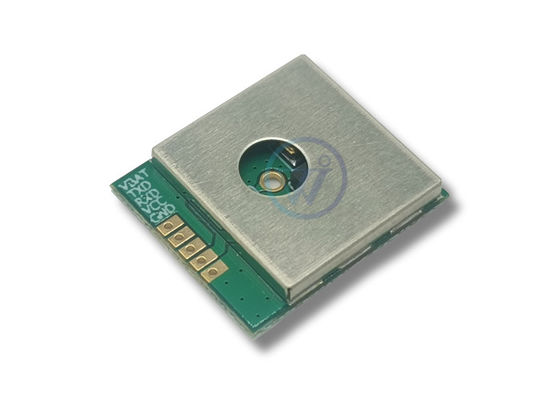

Parameters of YW-15134Z3 GPS Module
| Item | Parameter |
| Chipset | Goke, CKS, or appointed |
| Receiver Frequency (reference, customizable selection and configuration) | GPS L1 C/A |
| Number of Channels | As per order |
| Positioning Accuracy | Horizontal Accuracy: 2.5 to 5 meters |
| Time-To-First-Fix (TTFF) | Hot Start Time:1 s |
| Sensitivity | Tracking Sensitivity: -162 dBm |
| Baud Rate | 9,600 bps (Default) or 115200bps |
| Max Navigation Update Rate | 1Hz to 10Hz |
| Accuracy of Time Pulse Signal | RMS 25 ns |
| Velocity accuracy | 0.1 m/s |
| Data Output Format | NMEA 0183 standard sentences (GGA, GLL, GSA, GSV, RMC, VTG, ZDA, ANT, DHV, LPS, UTC, GST etc. customizable selection) |
| Interface Type | UART, I2C, SPI, USB, etc. |
| Operating Voltage | 3.3V ~ 5V/3.3V~12V |
| Power Consumption | Operating Current: 25mA to 50mA |
| Operating Temperature Range | -40°C to 85°C |
| Antenna Type | patch ceramic antenna |
| Supported Satellite Systems | GPS, GLONASS, Galileo, BeiDou, |
| Firmware Upgrade | Supported or not supported |
| Package Type | SMD |
| Certifications | FCC, CE, RoHS, etc. |
| White label | supported |
The Importance of Tracking Accuracy (GPS Tracker): Why 2.5m vs. 10m Matters
Tracking accuracy is a critical factor in GPS tracker and GPS module, determining how precisely a device can pinpoint its location. The difference between 2.5-meter and 10-meter accuracy may seem small on paper, but in real-world applications, it can significantly impact performance, safety, and efficiency.
1, Operational Efficiency
High accuracy (2.5m) ensures better route optimization for logistics, reducing fuel costs and delivery times.
Low accuracy (10m) may lead to inefficient navigation, especially in dense urban areas.
2, Safety & Security
In autonomous vehicles or drones, 2.5m precision prevents collisions and ensures safe navigation.
A 10m error could misplace a vehicle in the wrong lane or fail to detect obstacles in time.
3, Asset & Fleet Management
For stolen vehicle recovery, 2.5m accuracy helps locate a car in a parking lot, while 10m might only identify the general area.
Fleet managers need precise tracking to monitor driver behavior (e.g., idling, speeding) accurately.
4, Specialized Applications
Surveying & Agriculture: 2.5m accuracy enables precise land mapping and automated farming.
Emergency Services: First responders need exact locations (2.5m) to reach victims faster.
| Scenario | 2.5m Accuracy | 10m Accuracy |
| Urban Navigation | Correctly identifies the exact building or parking spot. | May place the GPS tracker on the wrong street. |
| Autonomous Vehicles | Ensures lane-level precision. | Could misinterpret road positioning. |
| Fleet Tracking | Detects if a truck is at a loading bay or a nearby lot. | Only confirms the truck is somewhere in the facility. |
| Theft Recovery | Locates a stolen bike inside a parking garage. | Shows it’s "somewhere in the block." |
While 10m accuracy may suffice for basic location tracking, 2.5m precision is essential for mission-critical applications like autonomous driving, logistics, and emergency response. The choice depends on the use case—higher accuracy improves reliability, safety, and operational efficiency, justifying the investment in advanced GPS tracker technology.
|
|
| Brand Name: | YOUWEI |
| Model Number: | YW-15134Z3 |
| MOQ: | 10 |
| Price: | USD 4-6 UNIT |
| Packaging Details: | Tray / Cartons |
| Payment Terms: | T/T, Western Union, MoneyGram, D/A, L/C, Paypal, Alibaba Pay |
Key Features and Benefits of Youwei GPS Modules
1, Superior Signal Acquisition
Maintains reliable satellite tracking even in low-signal conditions
2, Multi-Channel Processing
Simultaneous reception from multiple satellites through parallel channels enhances both positioning precision and acquisition speed
3, Rapid Initialization
Optimized start-up performance with:
Instant hot-start capability
Efficient warm-start recovery
Reliable cold-start initialization
4, High-Accuracy Positioning
Delivers precise geolocation data with both horizontal and vertical position reporting
5, Power Efficiency
Advanced power management maintains operational performance while maximizing battery life
6, Environmental Robustness
Consistent operation across extreme temperature ranges
7, EMI Resistance
Stable signal reception maintained in electromagnetically challenging environments
8, Multipath Mitigation
Specialized algorithms minimize positioning errors caused by signal reflections
9, Global System Compatibility
Full support for all major GNSS constellations:
GPS (U.S.)
GLONASS (Russia)
Galileo (EU)
BeiDou (China)
Parameters of YW-15134Z3 GPS Module
| Item | Parameter |
| Chipset | Goke, CKS, or appointed |
| Receiver Frequency (reference, customizable selection and configuration) | GPS L1 C/A |
| Number of Channels | As per order |
| Positioning Accuracy | Horizontal Accuracy: 2.5 to 5 meters |
| Time-To-First-Fix (TTFF) | Hot Start Time:1 s |
| Sensitivity | Tracking Sensitivity: -162 dBm |
| Baud Rate | 9,600 bps (Default) or 115200bps |
| Max Navigation Update Rate | 1Hz to 10Hz |
| Accuracy of Time Pulse Signal | RMS 25 ns |
| Velocity accuracy | 0.1 m/s |
| Data Output Format | NMEA 0183 standard sentences (GGA, GLL, GSA, GSV, RMC, VTG, ZDA, ANT, DHV, LPS, UTC, GST etc. customizable selection) |
| Interface Type | UART, I2C, SPI, USB, etc. |
| Operating Voltage | 3.3V ~ 5V/3.3V~12V |
| Power Consumption | Operating Current: 25mA to 50mA |
| Operating Temperature Range | -40°C to 85°C |
| Antenna Type | patch ceramic antenna |
| Supported Satellite Systems | GPS, GLONASS, Galileo, BeiDou, |
| Firmware Upgrade | Supported or not supported |
| Package Type | SMD |
| Certifications | FCC, CE, RoHS, etc. |
| White label | supported |
The Importance of Tracking Accuracy (GPS Tracker): Why 2.5m vs. 10m Matters
Tracking accuracy is a critical factor in GPS tracker and GPS module, determining how precisely a device can pinpoint its location. The difference between 2.5-meter and 10-meter accuracy may seem small on paper, but in real-world applications, it can significantly impact performance, safety, and efficiency.
1, Operational Efficiency
High accuracy (2.5m) ensures better route optimization for logistics, reducing fuel costs and delivery times.
Low accuracy (10m) may lead to inefficient navigation, especially in dense urban areas.
2, Safety & Security
In autonomous vehicles or drones, 2.5m precision prevents collisions and ensures safe navigation.
A 10m error could misplace a vehicle in the wrong lane or fail to detect obstacles in time.
3, Asset & Fleet Management
For stolen vehicle recovery, 2.5m accuracy helps locate a car in a parking lot, while 10m might only identify the general area.
Fleet managers need precise tracking to monitor driver behavior (e.g., idling, speeding) accurately.
4, Specialized Applications
Surveying & Agriculture: 2.5m accuracy enables precise land mapping and automated farming.
Emergency Services: First responders need exact locations (2.5m) to reach victims faster.
| Scenario | 2.5m Accuracy | 10m Accuracy |
| Urban Navigation | Correctly identifies the exact building or parking spot. | May place the GPS tracker on the wrong street. |
| Autonomous Vehicles | Ensures lane-level precision. | Could misinterpret road positioning. |
| Fleet Tracking | Detects if a truck is at a loading bay or a nearby lot. | Only confirms the truck is somewhere in the facility. |
| Theft Recovery | Locates a stolen bike inside a parking garage. | Shows it’s "somewhere in the block." |
While 10m accuracy may suffice for basic location tracking, 2.5m precision is essential for mission-critical applications like autonomous driving, logistics, and emergency response. The choice depends on the use case—higher accuracy improves reliability, safety, and operational efficiency, justifying the investment in advanced GPS tracker technology.
