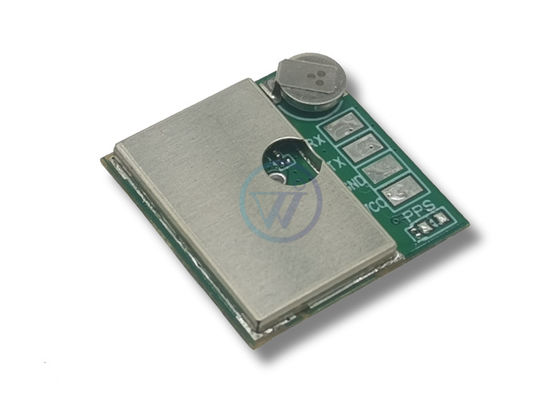

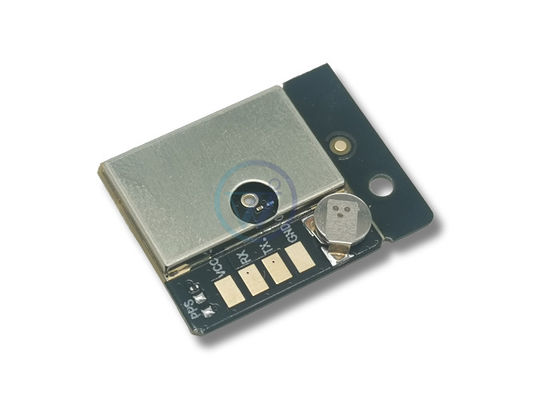

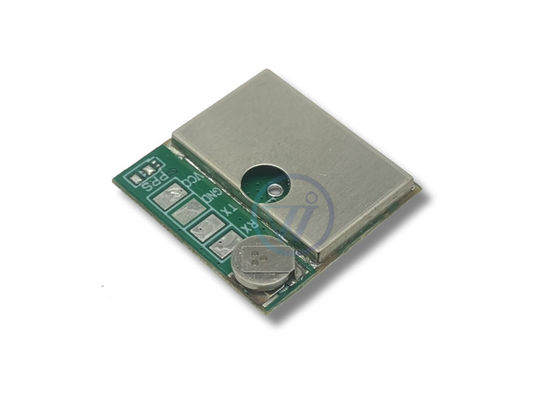

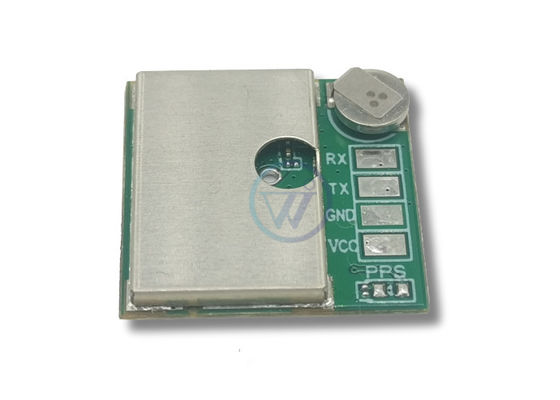

High Accuracy GNSS GPS Module with Utilizes Industrial-grade Temperature-compensated Crystal Oscillator TCXO and Better Positioning Performance

Name: High Accuracy GNSS GPS Module with Utilizes Industrial-grade Temperature-compensated Crystal Oscillator TCXO and Better Positioning Performance
Brand: Shenzhen Youwei Communication Co., Ltd.
SKU: YW-18182G3
Price: 3.50 USD
Availability: InStock

Brand Name:	Youwei
Model Number:	YW-18182G3
MOQ:	100
Price:	USD 3.5-4.5 UNIT
Delivery Time:	5-7 business days
Payment Terms:	T/T, Western Union, MoneyGram, D/A, L/C, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE FCC RoHS

Item Name:

TCXO GNSS Module

Product Dimension:

18x18x2

Country Of Origin:

China

Chipset:

AT6558R Or Customizable

Satellite System:

GPS, QZSS, Beidou,GLONASS, Galileo,SBAS

Positioning Accuracy:

< 10 Meters

Update Rate:

1~10Hz Optional

Customization:

Available

Warranty:

One Year

Antenna:

Patch Ceramic Antenna

Packaging Details:

Tray/Carton

Supply Ability:

200000pcs

Product Description

YW-18182G3 GPS Module Ordering Information

1. Core Specifications

Option Category	Available Choices
Satellite Systems	- GPS (L1 C/A) - GPS + GLONASS - GPS + Galileo - GPS + BeiDou - Multi-constellation (All systems)
Positioning Accuracy	- Standard: 2.5m (SBAS) / 5m (autonomous) - High-Precision: <1m (RTK/PPK) - Sub-meter (with DGPS)
Channels	72 channels or customized

2. Performance & Sensitivity

Option Category	Available Choices
Update Rate	- 1Hz (default) - 5Hz/10Hz (navigation) - 20Hz/50Hz (drone/racing)
TTFF	- Cold start: ≤30s - Hot start: ≤1s - A-GPS assisted: ≤5s
Sensitivity	- Tracking: -165dBm to -162dBm - Acquisition: -148dBm to -160dBm

3. Interfaces & Communication

Option Category	Available Choices
Data Interface	- UART (9600/115200 bps) - I2C/SPI - USB 2.0/3.0 - CAN bus (automotive)
Protocols	- NMEA 0183 (default) - UBX (u-blox binary) - RTCM 3.x (RTK)
Wireless Connectivity	- Bluetooth/BLE - Wi-Fi - 4G LTE (with GNSS+cellular modules)

4. Power & Environmental

Option Category	Available Choices
Operating Voltage	- 3.3V (low-power) - 5V (industrial) - Wide range: 2.7V–5.5V
Power Consumption	- Active: 25mA–50mA - Sleep: <1mA - Supercapacitor backup (optional)
Temperature Range	- Commercial: -20°C to +70°C - Industrial: -40°C to +85°C - Automotive: -40°C to +105°C

5. Antenna Options

Option Category	Available Choices
Antenna Type	- Passive ceramic patch (embedded) - Active external (SMA/FAKRA) - Magnetic mount
Antenna Gain	- Standard: 28dB - High-gain: 35dB (for weak signals)

6. Certifications & Compliance

Option Category	Available Choices
Certifications	- FCC/CE/RoHS/Country-specific Professional Certification

7. Additional Features

Option Category	Available Choices
Data Logging	- Built-in flash (4MB–32MB) - MicroSD slot
Firmware Upgrades	- OTA (Wi-Fi/cellular) - USB/UART local update
Special Functions	- Geofencing - Dead reckoning (DR) - Anti-jamming (military-grade)

Key Advantages of TCXO in GPS/GNSS Modules

1. Higher Frequency Stability

Standard XO: Prone to frequency drift due to temperature changes (typical stability: ±10–100 ppm).

TCXO: Uses temperature compensation to minimize drift (typical stability: ±0.5–5 ppm).

Impact on GPS Module:

Faster Time-To-First-Fix (TTFF) and reduced timing errors.

Improved positioning accuracy, especially in dynamic or extreme-temperature environments.

2. Better Weak-Signal Performance

TCXO’s low phase noise enhances the module’s ability to decode weak satellite signals.

Use Cases:

Urban canyons, indoor navigation (e.g., shared bikes, car trackers).

Mission-critical applications (drones, emergency beacons).

3. Superior Temperature Resistance

Standard XO: Performance degrades in extreme heat/cold, causing positioning drift or signal loss.

TCXO: Maintains stability across a wide range (-40°C to +85°C), ideal for:

Industrial equipment (e.g., RTK surveying devices).

Automotive/aerospace applications with large temperature swings.

4. Precision Timing Synchronization

Critical for:

Cellular base stations (5G synchronization).

Financial timestamping (nanosecond-level accuracy).

TCXO reduces PPS (Pulse-Per-Second) jitter, ensuring reliable timekeeping.

5. Power Efficiency & Long-Term Reliability

While TCXO consumes slightly more power (1–5 mA) than XO, its stability reduces frequent signal reacquisition, saving energy overall.

Lower aging rate (e.g., ±1 ppm/year) extends module lifespan.

TCXO vs. Standard XO: Quick Comparison

Feature	TCXO	Standard XO
Frequency Stability	±0.5–5 ppm	±10–100 ppm
Temperature Range	-40°C to +85°C (stable)	Sensitive to temperature
Weak-Signal Handling	Excellent	Poor
Cost	Higher (+20–50%)	Low
Typical Use Cases	High-precision applications (surveying, drones)	Consumer devices (basic navigation)

When to Choose a TCXO GPS Module?

High-precision positioning (e.g., autonomous vehicles, RTK surveying).

Harsh environments (outdoor industrial use, automotive).

Time-critical systems (5G networks, financial infrastructure).

Weak-signal scenarios (urban/indoor navigation).

For cost-sensitive, low-accuracy applications (e.g., simple GPS trackers, smartwatches), a standard XO module may suffice.
