Created with Pixso. Youwei GNSS Module 38mmx49mm High-Precision GPS for Car Navigation
Youwei GNSS Module 38mmx49mm High-Precision GPS for Car Navigation
  • name
  • name
  • name
  • name
  • name
  • name

Youwei GNSS Module 38mmx49mm High-Precision GPS for Car Navigation

Model Number: YW-198G3
MOQ: 1
Price: $3.50-4.50
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Dimensions:
38mm*49mm*16mm
Frequency Band:
L1+L5
Sensitivity:
-130 DBm To -160 DBm
Positioning Accuracy:
1m To 3m
Communication Interface:
USB, I2C, SPI, Uart
Operating Temperature:
-40 To 85℃
Battery Type:
Internal Back-up Battery
Chipset Model:
GK-9501
Available Baud Rate:
9,600 Bps
Channels:
66
Cold Start Time:
29 Seconds
Warm Start Time:
28 Seconds
Hot Start Time:
1 Second
Maximum Altitude:
50,000 Meter
Maximum Velocity:
515 M/s
Highlight:

high-precision GPS module for car navigation

,

GNSS module 38mmx49mm

,

GPS module with high accuracy

Product Description
Youwei G-Mouse Car Navigation System GNSS Module High-Precision GPS Modules
Product Specifications
Feature Specification
Chip MediaTek GK9051 (Rom Version)
Frequency L1 frequency band
Code C/A Code
Protocol NMEA 0183 v4.1
GALILEO L1 open service (with upgrade)
Default: GGA,GSA,GSV,RMC
Support: VTG,GLL,TXT ublox binary and NMEA Command
Available Baud Rate 9,600 bps
Channels 66
Sensitivity Tracking: -161dBm
Reacquisition: -160dBm
ColdStart: -147dBm
Start Times Cold Start: 29 seconds average
Warm Start: 28 seconds average
Hot Start: 1 second average
Accuracy Horizontal Position: Autonomous <2.5m average
SBAS < 2.0m average
Velocity: 0.1 m/s
Timepulse signal RMS 30 ns
Maximum Altitude 50,000 meter
Maximum Velocity 515 m/s (1000 knots)
Dynamics 4G
Max navigation update rate 1 Hz (Default 1Hz)

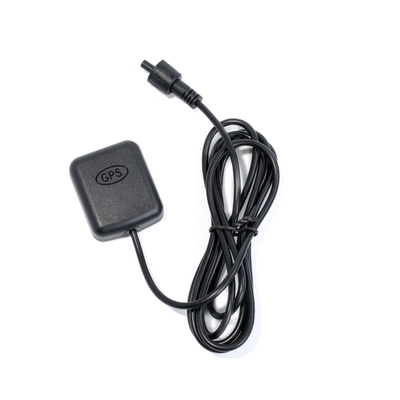

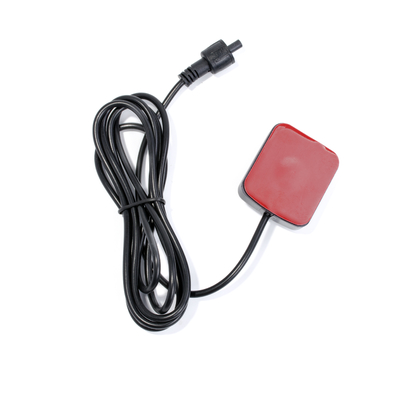

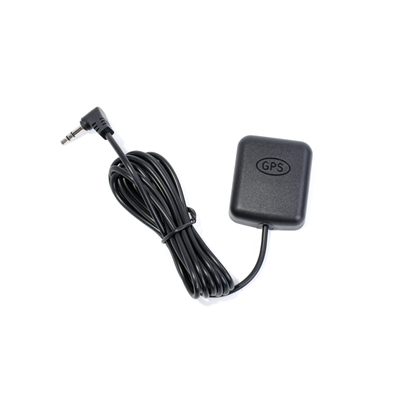

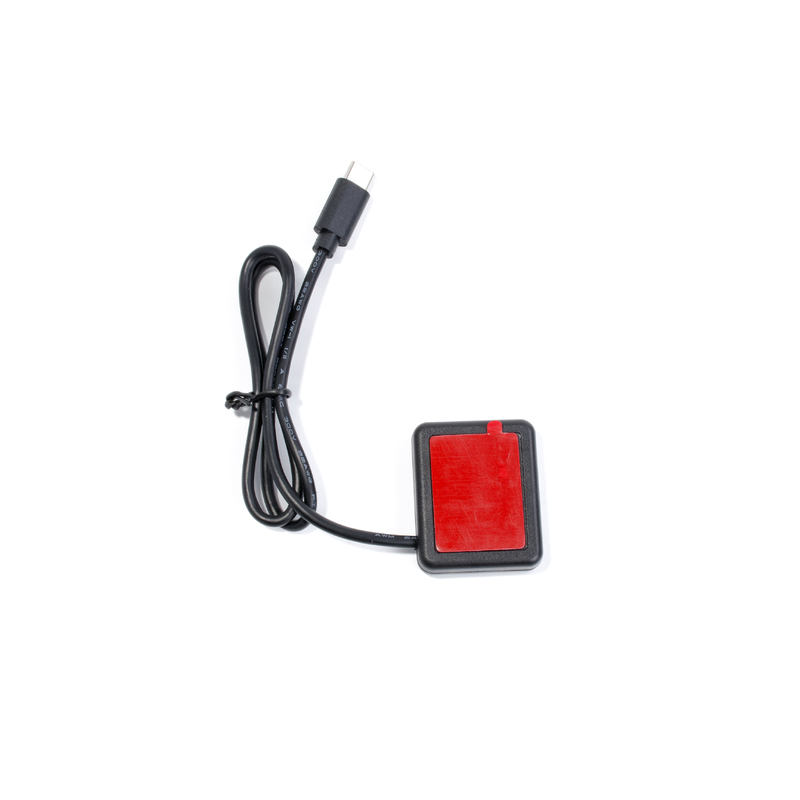

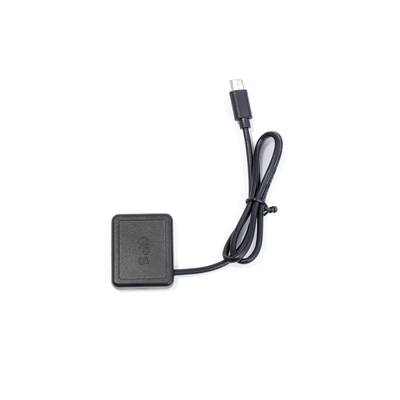

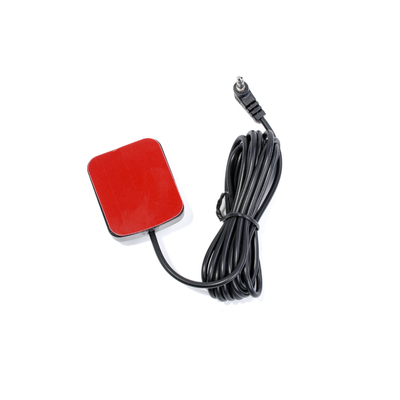

Product Image
Youwei GNSS Module 38mmx49mm High-Precision GPS for Car Navigation 0
Our Services
Expert Consultation Our professional team provides comprehensive information about products, industry trends, and market dynamics.
Custom Solutions We offer customized product specifications, packaging, and service packages tailored to your requirements.
Order Tracking Regular updates on production progress, completion time, and shipping details throughout the fulfillment process.
Dedicated Support Prompt coordination to address any issues or changes, with continuous communication at every stage.
Quality Assurance 1-year warranty with full responsibility for quality-related issues and timely resolution.
Technical Support Comprehensive services including installation guidance, maintenance advice, and technical training.
Return Policy Hassle-free return or exchange process within specified period of receiving the product.
Company Information
Youwei GNSS Module 38mmx49mm High-Precision GPS for Car Navigation 1
Frequently Asked Questions
Youwei GNSS Module 38mmx49mm High-Precision GPS for Car Navigation 2
