Created with Pixso. GPS GNSS Antenna for Dash Camera with 3.5mm Male Connector
GPS GNSS Antenna for Dash Camera with 3.5mm Male Connector
  • name
  • name
  • name
  • name
  • name
  • name

GPS GNSS Antenna for Dash Camera with 3.5mm Male Connector

Brand Name: Youwei
Model Number: YW-168G3
MOQ: 1
Price: $2.50-4.50
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Antenna Type:
GPS Antenna
Connector Type:
IPEX
Material:
Ceramic Dielectric Substrate
Polarization:
Linear Polarization
Chip Model:
GK-9501
Frequency Band:
L1 Frequency Band
Code Type:
C/A Code
Baud Rate:
9,600 Bps
Channels:
66
Tracking Sensitivity:
-161dBm
Cold Start Time:
29 Seconds
Horizontal Accuracy:
<2.5m Average
Maximum Altitude:
50,000 Meter
Maximum Velocity:
515 M/s
Update Rate:
1 Hz
Highlight:

GPS GNSS antenna for dash cam

,

3.5mm male connector GPS antenna

,

dash camera GPS module antenna

Product Description
External GPS Antenna Receiver Module 3.5mm Male for Vehicle Car Dash Camera
Product Specifications
Chip MediaTek GK9051 (Rom Version)
Frequency L1 frequency band
Code C/A Code
Protocol NMEA 0183 v4.1
GALILEO L1 open service (with upgrade)
Default:GGA,GSA,GSV,RMC
Support:VTG,GLL,TXT ublox binary and NMEA Command
Available Baud Rate 9,600 bps
Channels 66
Sensitivity Tracking:-161dBm
Reacquisition:-160dBm
ColdStart:-147dBm
Cold Start 29 seconds, average
Warm Start 28 seconds, average
Hot Start 1 second, average
Accuracy HorizontalPosition:Autonomous<2.5m average
SBAS < 2.0m average
Velocity: 0.1 m/s
Maximum Altitude 50,000 meter
Maximum Velocity 515 m/s(1000 knots)
Dynamics 4G
Max navigation update rate 1 Hz (Default 1Hz)
Product Images

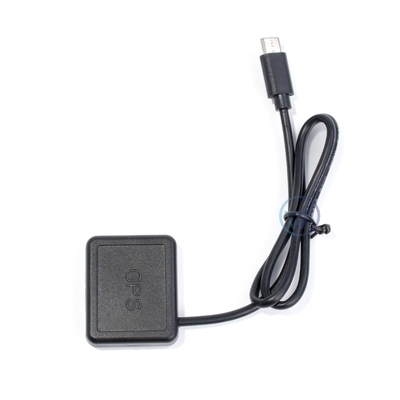

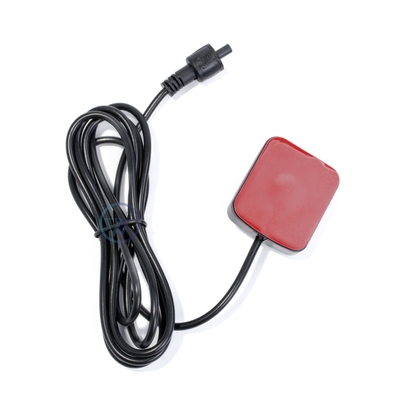

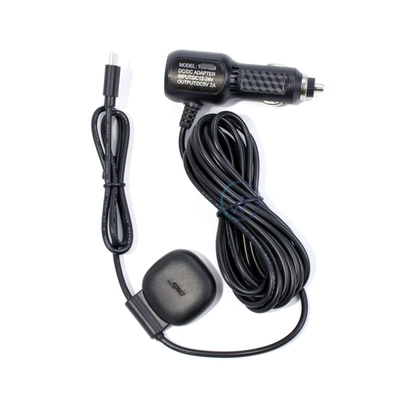

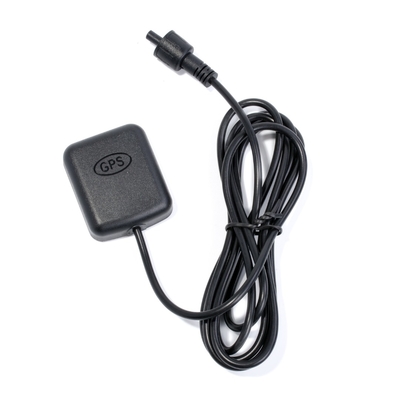

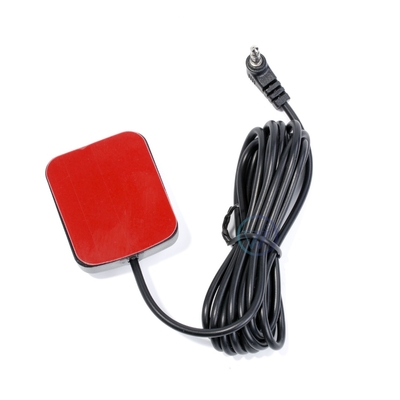

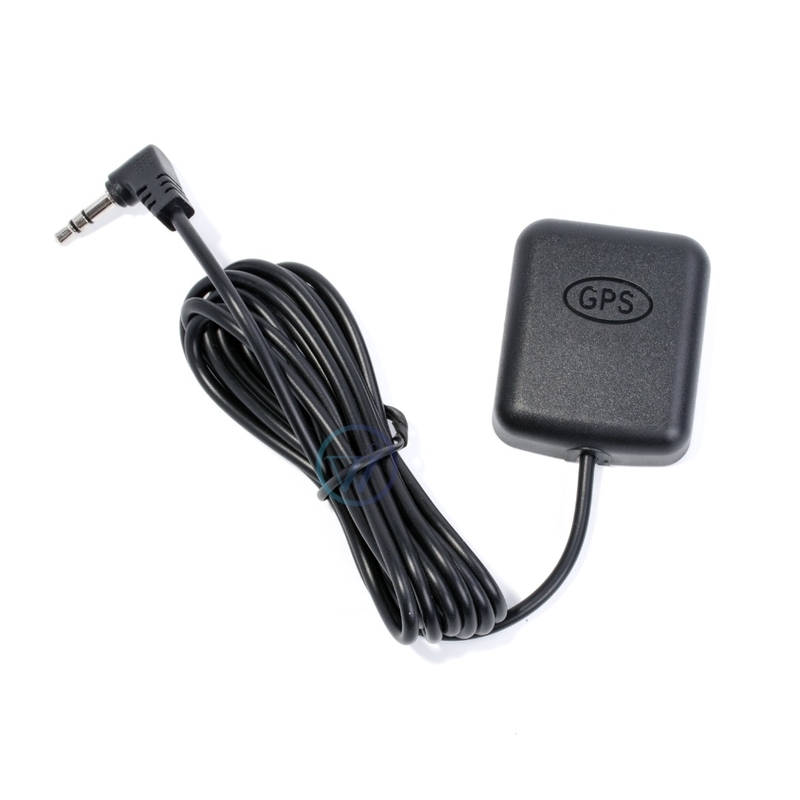

GPS GNSS Antenna for Dash Camera with 3.5mm Male Connector 0 GPS GNSS Antenna for Dash Camera with 3.5mm Male Connector 1 GPS GNSS Antenna for Dash Camera with 3.5mm Male Connector 2
Our Services
Expert Consultation: Our professional team provides comprehensive information about products, industry trends, and market dynamics.
Custom Solutions: We offer tailored product specifications, packaging, and service packages to meet your specific requirements.
Order Tracking: Regular updates on production progress, completion time, and shipping details throughout the fulfillment process.
Dedicated Support: Prompt coordination with relevant departments to resolve any issues and maintain clear communication.
Quality Assurance: 1-year warranty with full responsibility for quality-related issues and trained after-sales support.
Technical Support: Comprehensive services including installation guidance, maintenance advice, and technical training.
Return Policy: 5-day return or exchange policy for unsatisfied purchases with hassle-free processing.
