Mini USB Hardwire Cable Kit with 12V-24V GPS Receiver for 24-Hour Parking Monitoring and L1 Frequency Band

Model Number: YW-168G3
MOQ: 1
Price: $8-10
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Chipset:
GK-9501
Frequency Band:
L1
Code Type:
C/A Code
Protocol Version:
NMEA 0183 V4.1
Baud Rate:
9,600 Bps
Channel Count:
66
Tracking Sensitivity:
-161dBm
Reacquisition Sensitivity:
-160dBm
Cold Start Time:
29 Seconds
Warm Start Time:
28 Seconds
Hot Start Time:
1 Second
Position Accuracy:
<2.5m Autonomous
Velocity Accuracy:
0.1 M/s
Maximum Altitude:
50,000 Meter
Maximum Velocity:
515 M/s
Highlight:

12V-24V GPS Receiver

,

24-Hour Parking Monitoring GNSS Module

,

L1 Frequency Band USB Hardwire Cable Kit

Product Description
Mini USB Hardwire Cable Kit with 12V-24V GPS Receiver for 24-Hour Parking Monitoring Dash Cam
GPS Receiver Specifications
Feature Specification
Chip MediaTek GK9051 (Rom Version)
Frequency L1 frequency band
Code C/A Code
Protocol NMEA 0183 v4.1
GALILEO L1 open service (with upgrade)
Default:GGA,GSA,GSV,RMC
Support:VTG,GLL,TXT ublox binary and NMEA Command
Available Baud Rate 9,600 bps
Channels 66
Sensitivity Tracking:-161dBm
Reacquisition:-160dBm
ColdStart:-147dBm
Cold Start 29 seconds, average
Warm Start 28 seconds, average
Hot Start 1 second, average
Accuracy HorizontalPosition:Autonomous<2.5m average,
SBAS < 2.0m average
Velocity: 0.1 m/s
Maximum Altitude 50,000 meter
Maximum Velocity 515 m/s(1000 knots)
Dynamics 4G
Max navigation update rate 1 Hz (Default 1Hz)

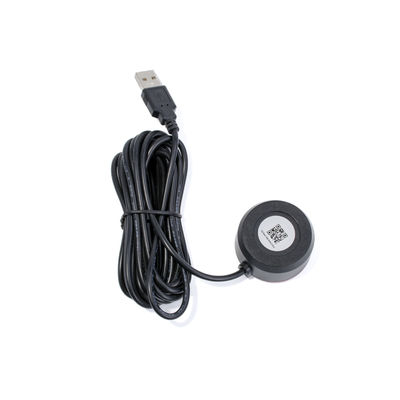

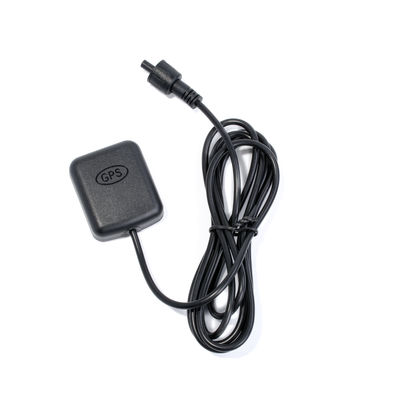

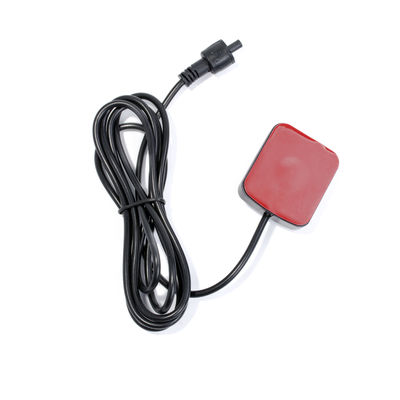

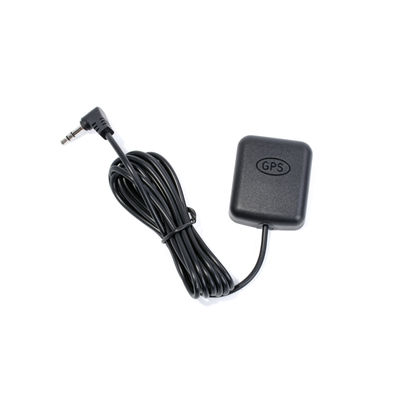

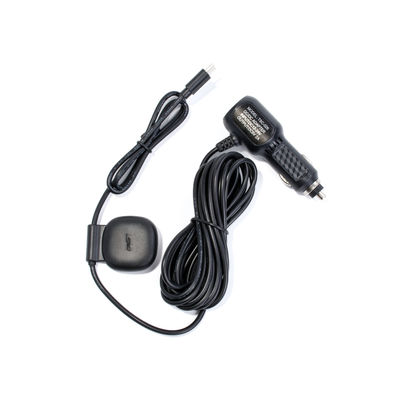

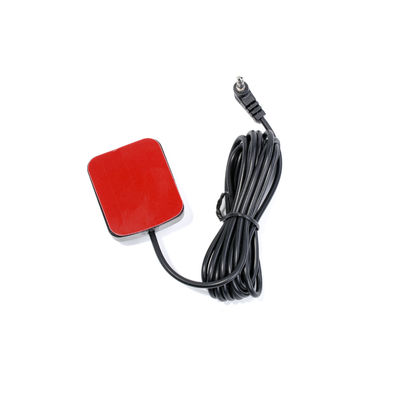

Product Images
Mini USB Hardwire Cable Kit with 12V-24V GPS Receiver for 24-Hour Parking Monitoring and L1 Frequency Band 0 Mini USB Hardwire Cable Kit with 12V-24V GPS Receiver for 24-Hour Parking Monitoring and L1 Frequency Band 1
