GPS Module
Created with Pixso. Low Power GNSS GPS Module for IoT Devices Asset Pet Tracking and Wearables
Low Power GNSS GPS Module for IoT Devices Asset Pet Tracking and Wearables
  • name
  • name
  • name
  • name
  • name

Low Power GNSS GPS Module for IoT Devices Asset Pet Tracking and Wearables

Model Number: YW-10101Z1, YW-10101Z1
MOQ: 10
Price: $3.20-4
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Dimensions:
10x10x1mm
Communication Interface:
I2C, USB, SPI, UART
Tracking Accuracy:
<10m
Tracking Sensitivity:
-162dBm
Working Temperature:
-40°C To +85°C
Receiver Frequency:
GPS L1 C/A SBAS L1 C/A QZSS L1 C/A GLONASS L1OF BeiDou B1 Galileo E1B/C²
Time-To-First-Fix:
Hot Start:1s, Cold Start:30s, Warm Start:28s
Baud Rate:
9,600 Bps (Default) Or 115200bps
Max Navigation Rate:
1Hz To 10Hz
Time Pulse Accuracy:
RMS 25 Ns
Velocity Accuracy:
0.1 M/s
Operating Voltage:
3.3V ~ 5V/3.3V~12V
Power Consumption:
Operating: 25mA To 50mA, Standby: 1mA To 5mA
Antenna Type:
Internal Patch Ceramic Antenna
Supported Satellites:
GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS
Highlight:

IoT Devices GNSS GPS Module

,

Asset Pet Tracking GPS Module

,

Wearables GNSS Module

Product Description
Low Power GNSS GPS Module for IoT Devices Asset Pet Tracking Wearables
YW-10101Z1 GPS Positioning Module Specifications
Parameter Specification
Model No. YW-10101Z1
Chipset Goke, CKS, or appointed
Receiver Frequency GPS L1 C/A SBAS L1 C/A QZSS L1 C/A GLONASS L1OF BeiDou B1 Galileo E1B/C² (or upon order)
Number of Channels As per order
Locating Accuracy Horizontal Accuracy: 2.5 to 5 meters
Time-To-First-Fix Hot Start Time: 1s | Cold Start Time: 30s | Warm Start Time: 28s
Sensitivity Tracking: -162 dBm | Acquisition: -160 dBm | Cold Start: -147dBm
Baud Rate 9,600 bps (Default) or 115200bps
Max Navigation Update Rate 1Hz to 10Hz
Accuracy of Time Pulse Signal RMS 25 ns
Velocity accuracy 0.1 m/s
Data Output Format NMEA 0183 standard sentences (GGA, GLL, GSA, GSV, RMC, VTG, ZDA, ANT, DHV, LPS, UTC, GST etc.)
Interface Type UART, I2C, SPI, USB, etc.
Operating Voltage 3.3V ~ 5V/3.3V~12V
Power Consumption Operating Current: 25mA to 50mA | Standby Current: 1mA to 5mA
Operating Temperature Range -40°C to 85°C
Antenna Type Internal patch ceramic antenna
Supported Satellite Systems GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS
Firmware Upgrade Supported or not supported
Package Type SMD
Certifications FCC, CE, RoHS, etc.
Packing way Baseband Packaging/Tray Packaging
Dual-frequency vs. Single-frequency GPS Module Comparison
A dual-frequency GPS module receives signals on two different frequency bands (typically L1 and L5 for civilian use, or L1 and L2 for military/surveying applications), while a single-frequency module only uses L1.
Advantages of Dual-frequency GPS:
  • Higher Accuracy - Corrects ionospheric delays, reducing positioning errors to sub-meter or centimeter-level accuracy (vs. ~3-5m for single-frequency)
  • Better Signal Reliability - Less affected by multipath interference and urban canyon effects
  • Faster Convergence - Achieves stable position fix more quickly in challenging environments
  • Improved Performance in Tough Conditions - Works better under tree cover, near tall structures, or in weak signal areas
Feature Single-frequency (L1) Dual-frequency (L1+L5/L2)
Accuracy ~3-5 meters <1 meter (up to cm-level with augmentation)
Ionospheric Correction No Yes
Multipath Resistance Moderate High
Cost Lower Higher
Applications
  • Single-frequency: Basic navigation, consumer devices (e.g., smartphones, budget trackers)
  • Dual-frequency: Precision agriculture, drone navigation, autonomous vehicles, surveying, and high-end IoT devices
Dual-frequency GPS modules provide superior accuracy and robustness, making them ideal for professional and high-precision use cases.

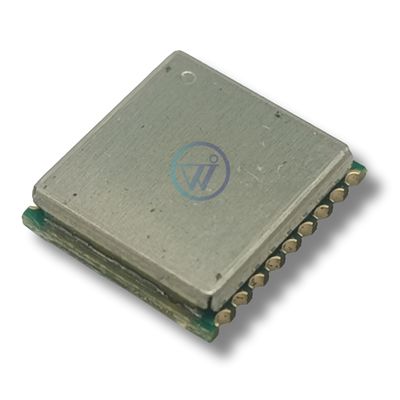

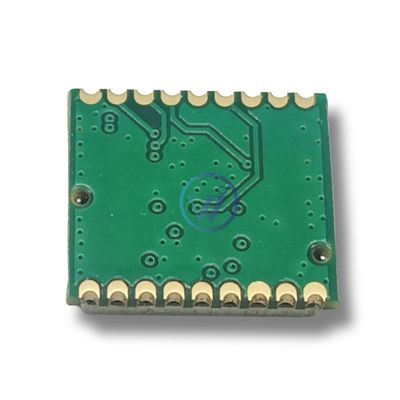

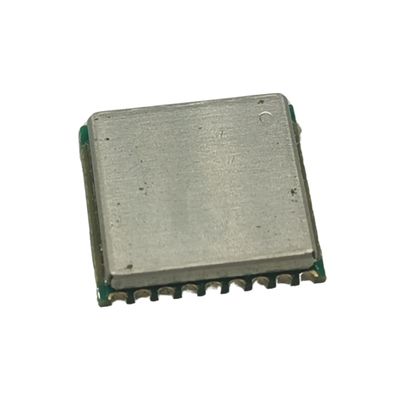

Product Images
Low Power GNSS GPS Module for IoT Devices Asset Pet Tracking and Wearables 0
Low Power GNSS GPS Module for IoT Devices Asset Pet Tracking and Wearables 1
Low Power GNSS GPS Module for IoT Devices Asset Pet Tracking and Wearables 2
Low Power GNSS GPS Module for IoT Devices Asset Pet Tracking and Wearables 3
Low Power GNSS GPS Module for IoT Devices Asset Pet Tracking and Wearables 4
Low Power GNSS GPS Module for IoT Devices Asset Pet Tracking and Wearables 5
