GPS Module
Created with Pixso. Real-Time Tracking GNSS GPS Module with Multi-Channel Processing and High-Accuracy Positioning for Vehicle Asset Tracking
Real-Time Tracking GNSS GPS Module with Multi-Channel Processing and High-Accuracy Positioning for Vehicle Asset Tracking
  • name
  • name
  • name
  • name

Real-Time Tracking GNSS GPS Module with Multi-Channel Processing and High-Accuracy Positioning for Vehicle Asset Tracking

Model Number: YW-15134Z3, YW-15134Z3
MOQ: 10
Price: $3.50-5
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Dimensions:
15x13x4mm
Sensitivity:
-162 DBm
Positioning Accuracy:
<2.5m
Communication Interface:
I2C, USB, SPI, Uart
Positioning Systems:
GPS, GLONASS, Galileo, BeiDou
Environment Temperature:
-40°C To +85°C
Number Of Channels:
As Per Order
Time-To-First-Fix:
Hot Start:1s, Cold Start:30s, Warm Start:28s
Baud Rate:
9,600 Bps (Default) Or 115200bps
Max Navigation Rate:
1Hz To 10Hz
Time Pulse Accuracy:
RMS 25 Ns
Velocity Accuracy:
0.1 M/s
Operating Voltage:
3.3V ~ 5V/3.3V~12V
Power Consumption:
Operating: 25mA To 50mA, Standby: 1mA To 5mA
Antenna Type:
Patch Ceramic Antenna
Highlight:

Real-Time Tracking GNSS Module

,

Multi-Channel Processing GPS Module

,

High-Accuracy Positioning Satellite Navigation Module

Product Description
Real-Time Tracking GNSS GPS Satellite Navigation Module

High-performance GPS module designed for OBD trackers, drones, dash cams, HD cameras, navigators, and IoT devices with superior positioning accuracy and reliability.

Key Features and Benefits
  • Superior Signal Acquisition: Maintains reliable satellite tracking even in low-signal conditions
  • Multi-Channel Processing: Simultaneous reception from multiple satellites enhances positioning precision and acquisition speed
  • Rapid Initialization: Optimized start-up performance with instant hot-start, efficient warm-start, and reliable cold-start capability
  • High-Accuracy Positioning: Delivers precise geolocation data with both horizontal and vertical position reporting
  • Power Efficiency: Advanced power management maintains performance while maximizing battery life
  • Environmental Robustness: Consistent operation across extreme temperature ranges
  • EMI Resistance: Stable signal reception in electromagnetically challenging environments
  • Multipath Mitigation: Specialized algorithms minimize positioning errors from signal reflections
  • Global System Compatibility: Supports all major GNSS constellations including GPS, GLONASS, Galileo, and BeiDou
Technical Specifications
Chipset Goke, CKS, or appointed
Receiver Frequency GPS L1 C/A SBAS L1 C/A QZSS L1 C/A GLONASS L1OF BeiDou B1 Galileo E1B/C²
Positioning Accuracy Horizontal: 2.5 to 5 meters
Vertical: 5-15 meters
Time-To-First-Fix (TTFF) Hot Start: 1s
Cold Start: 30s
Warm Start: 28s
Sensitivity Tracking: -162 dBm
Acquisition: -160 dBm
Cold Start: -147dBm
Baud Rate 9,600 bps (Default) or 115200bps
Max Navigation Update Rate 1Hz to 10Hz
Operating Voltage 3.3V ~ 5V/3.3V~12V
Power Consumption Operating Current: 25mA to 50mA
Standby Current: 1mA to 5mA
Operating Temperature -40°C to 85°C
Antenna Type Patch ceramic antenna
Certifications FCC, CE, RoHS

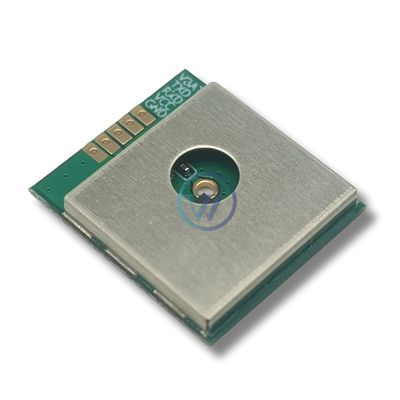

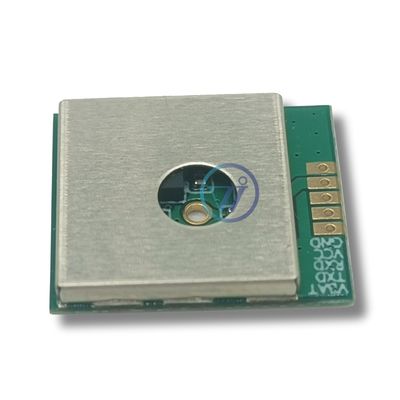

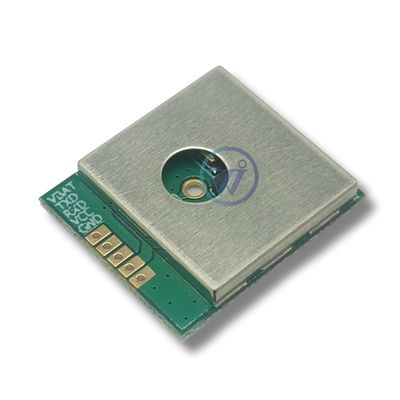

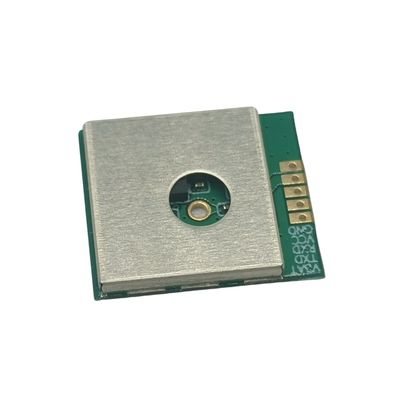

Product Images
Real-Time Tracking GNSS GPS Module with Multi-Channel Processing and High-Accuracy Positioning for Vehicle Asset Tracking 0
Real-Time Tracking GNSS GPS Module with Multi-Channel Processing and High-Accuracy Positioning for Vehicle Asset Tracking 1
Real-Time Tracking GNSS GPS Module with Multi-Channel Processing and High-Accuracy Positioning for Vehicle Asset Tracking 2
Real-Time Tracking GNSS GPS Module with Multi-Channel Processing and High-Accuracy Positioning for Vehicle Asset Tracking 3
Real-Time Tracking GNSS GPS Module with Multi-Channel Processing and High-Accuracy Positioning for Vehicle Asset Tracking 4
Real-Time Tracking GNSS GPS Module with Multi-Channel Processing and High-Accuracy Positioning for Vehicle Asset Tracking 5
