GPS Module
Created with Pixso. Customized High Accuracy GPS GNSS Module with 72 Channels and 1Hz-50Hz Update Rate for Industrial Applications
Customized High Accuracy GPS GNSS Module with 72 Channels and 1Hz-50Hz Update Rate for Industrial Applications
  • name
  • name
  • name
  • name

Customized High Accuracy GPS GNSS Module with 72 Channels and 1Hz-50Hz Update Rate for Industrial Applications

Model Number: YW-18182G3
MOQ: 10
Price: $3.20-4
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Dimensions:
18x18x2
Sensitivity:
Tracking: -165dBm To -162dBm
Positioning Accuracy:
Standard: 2.5m (SBAS) / 5m (autonomous)
Communication Interface:
I2C, USB, SPI, Uart
Satellite System:
GPS, QZSS, Beidou, GLONASS, Galileo, SBAS
Max Update Rate:
1~10Hz Optional
Channels:
72 Channels Or Customized
TTFF Cold Start:
≤30s
TTFF Hot Start:
≤1s
Operating Voltage:
3.3V, 5V, 2.7V-5.5V
Power Consumption:
Active: 25mA-50mA, Sleep: <1mA
Temperature Range:
Commercial: -20°C To +70°C, Industrial: -40°C To +85°C, Automotive: -40°C To +105°C
Antenna Gain:
Standard: 28dB, High-gain: 35dB
Data Interface:
UART, I2C/SPI, USB 2.0/3.0, CAN Bus
Protocols:
NMEA 0183, UBX, RTCM 3.x
Highlight:

72 Channels GPS Module

,

1Hz-50Hz Update Rate GNSS Module

,

Bluetooth/Wi-Fi/4G LTE TCXO GPS Module

Product Description
Customized High Accuracy GPS GNSS Module with Industrial-grade Temperature-compensated Crystal Oscillator (TCXO)
YW-18182G3 GPS Module Ordering Information
1. Core Specifications
Option Category Available Choices
Satellite Systems
  • GPS (L1 C/A)
  • GPS + GLONASS
  • GPS + Galileo
  • GPS + BeiDou
  • Multi-constellation (All systems)
Positioning Accuracy
  • Standard: 2.5m (SBAS) / 5m (autonomous)
  • High-Precision: <1m (RTK/PPK)
  • Sub-meter (with DGPS)
Channels 72 channels or customized
2. Performance & Sensitivity
Option Category Available Choices
Update Rate
  • 1Hz (default)
  • 5Hz/10Hz (navigation)
  • 20Hz/50Hz (drone/racing)
TTFF
  • Cold start: ≤30s
  • Hot start: ≤1s
  • A-GPS assisted: ≤5s
Sensitivity
  • Tracking: -165dBm to -162dBm
  • Acquisition: -148dBm to -160dBm
3. Interfaces & Communication
Option Category Available Choices
Data Interface
  • UART (9600/115200 bps)
  • I2C/SPI
  • USB 2.0/3.0
  • CAN bus (automotive)
Protocols
  • NMEA 0183 (default)
  • UBX (u-blox binary)
  • RTCM 3.x (RTK)
Wireless Connectivity
  • Bluetooth/BLE
  • Wi-Fi
  • 4G LTE (with GNSS+cellular modules)
4. Power & Environmental
Option Category Available Choices
Operating Voltage
  • 3.3V (low-power)
  • 5V (industrial)
  • Wide range: 2.7V-5.5V
Power Consumption
  • Active: 25mA-50mA
  • Sleep: <1mA
  • Supercapacitor backup (optional)
Temperature Range
  • Commercial: -20°C to +70°C
  • Industrial: -40°C to +85°C
  • Automotive: -40°C to +105°C
5. Antenna Options
Option Category Available Choices
Antenna Type
  • Passive ceramic patch (embedded)
  • Active external (SMA/FAKRA)
  • Magnetic mount
Antenna Gain
  • Standard: 28dB
  • High-gain: 35dB (for weak signals)
6. Certifications & Compliance
Option Category Available Choices
Certifications FCC/CE/RoHS/Country-specific Professional Certification
7. Additional Features
Option Category Available Choices
Data Logging
  • Built-in flash (4MB-32MB)
  • MicroSD slot
Firmware Upgrades
  • OTA (Wi-Fi/cellular)
  • USB/UART local update
Special Functions
  • Geofencing
  • Dead reckoning (DR)
  • Anti-jamming (military-grade)

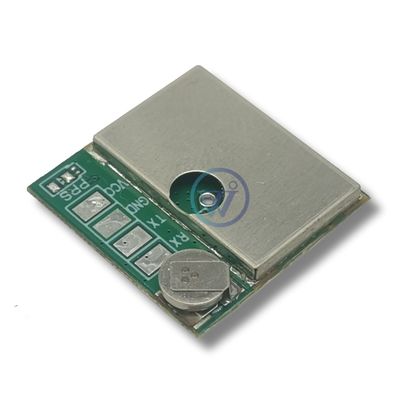

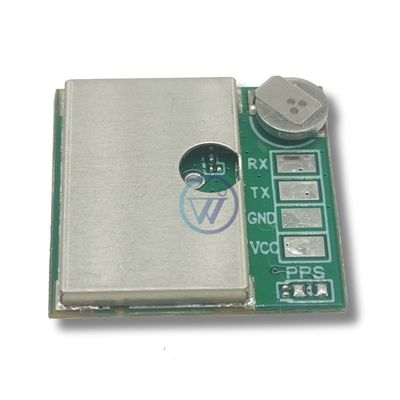

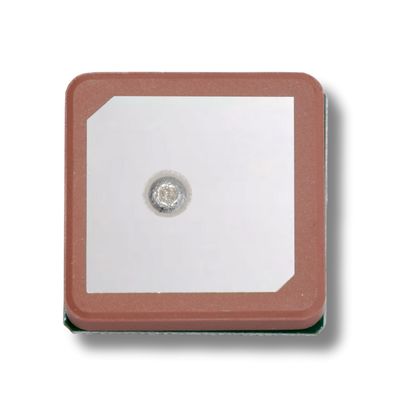

Product Images
Customized High Accuracy GPS GNSS Module with 72 Channels and 1Hz-50Hz Update Rate for Industrial Applications 0 Customized High Accuracy GPS GNSS Module with 72 Channels and 1Hz-50Hz Update Rate for Industrial Applications 1 Customized High Accuracy GPS GNSS Module with 72 Channels and 1Hz-50Hz Update Rate for Industrial Applications 2 Customized High Accuracy GPS GNSS Module with 72 Channels and 1Hz-50Hz Update Rate for Industrial Applications 3 Customized High Accuracy GPS GNSS Module with 72 Channels and 1Hz-50Hz Update Rate for Industrial Applications 4 Customized High Accuracy GPS GNSS Module with 72 Channels and 1Hz-50Hz Update Rate for Industrial Applications 5 Customized High Accuracy GPS GNSS Module with 72 Channels and 1Hz-50Hz Update Rate for Industrial Applications 6 Customized High Accuracy GPS GNSS Module with 72 Channels and 1Hz-50Hz Update Rate for Industrial Applications 7 Customized High Accuracy GPS GNSS Module with 72 Channels and 1Hz-50Hz Update Rate for Industrial Applications 8 Customized High Accuracy GPS GNSS Module with 72 Channels and 1Hz-50Hz Update Rate for Industrial Applications 9 Customized High Accuracy GPS GNSS Module with 72 Channels and 1Hz-50Hz Update Rate for Industrial Applications 10 Customized High Accuracy GPS GNSS Module with 72 Channels and 1Hz-50Hz Update Rate for Industrial Applications 11 Customized High Accuracy GPS GNSS Module with 72 Channels and 1Hz-50Hz Update Rate for Industrial Applications 12
Our Services
Customized High Accuracy GPS GNSS Module with 72 Channels and 1Hz-50Hz Update Rate for Industrial Applications 13
