Fast AGPS Supported GNSS GPS Module with Quick Positioning in Cold Start and High Sensitivity for Quick TTFF in Challenging Conditions
  • name
  • name
  • name
  • name
  • name

Fast AGPS Supported GNSS GPS Module with Quick Positioning in Cold Start and High Sensitivity for Quick TTFF in Challenging Conditions

Model Number: YW-35254G3
MOQ: 100
Price: $3-4
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Dimensions:
35x25x4mm
Sensitivity:
-147dBM~ -162dBm
Positioning Accuracy:
<2.5m
Communication Interface:
I2C, USB, SPI, UART
Tracking Accuracy:
2.5 Meters
Tracking Sensitivity:
-162 DBm
Supported Systems:
GPS, SBAS, QZSS, GLONASS, BeiDou, Galileo
Update Rate:
1Hz ~ 10Hz
Voltage Range:
3V ~ 5V
Number Of Channels:
32 To 99
Velocity:
515 M/s
Velocity Accuracy:
0.1m/s (without Aid), 0.05m/s (DGPS)
TTFF:
Hot Start: 1s, Warm Start: 28s, Cold Start: 30s
Baud Rate:
9600 Bps
Operating Temperature:
-40°C To 85°C
Highlight:

Quick Positioning GNSS GPS Module

,

Quick TTFF GNSS GPS Module

,

High Sensitivity GNSS GPS Module

Product Description
Fast AGPS Supported GNSS GPS Module

High-performance GNSS GPS locating module with quick positioning capabilities in cold start conditions, featuring fast TTFF (Time-To-First-Fix) performance even in challenging environments.

Key Features
  • Supports multiple satellite systems: GPS, SBAS, QZSS, GLONASS, BeiDou, Galileo
  • Fast TTFF: 1 second (hot start), 30 seconds (cold start)
  • High sensitivity: -162 dBm tracking, -147 dBm cold start
  • Multiple interface options: UART, I2C, SPI, USB
  • Wide operating temperature range: -40°C to 85°C
  • Compact SMD package: 35x25x4mm
  • AGPS supported for enhanced performance
Technical Specifications
Parameter Specification
Item No. YW-35254G3
Brand Youwei
Frequency GPS L1 C/A, SBAS L1 C/A, QZSS L1 C/A, GLONASS L1OF, BeiDou B1, Galileo E1B/C² (Customizable)
Channels 32 to 99 (As per order)
Positioning Accuracy 2 meters to 5 meters
Velocity 515 m/s
Velocity Accuracy Without aid: 0.1m/s, DGPS: 0.05m/s
TTFF Hot start: 1s, Warm start: 28s, Cold start: 30s
Sensitivity Tracking: -162 dBm, Acquisition: -160 dBm, Cold Start: -147dBm
Baud Rate 9600 bps (default)
Navigation Update Rate 1Hz (default), maximum 10Hz
Timing Accuracy 25 ns RMS
Interface Type UART, I2C, SPI, USB
Data Output Format NMEA 0183
Power Supply 3.3V ~ 5V
Operating Current Typical 25mA
Temperature Range -40°C to 85°C
Antenna Type Patch ceramic antenna
Product Size 35x25x4mm
Package Type SMD

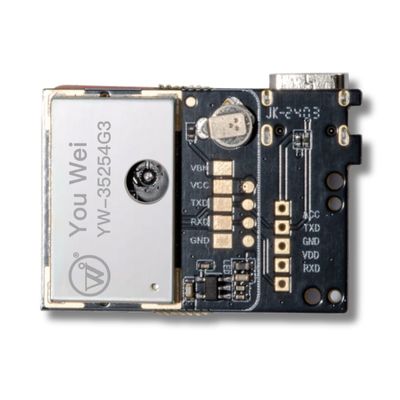

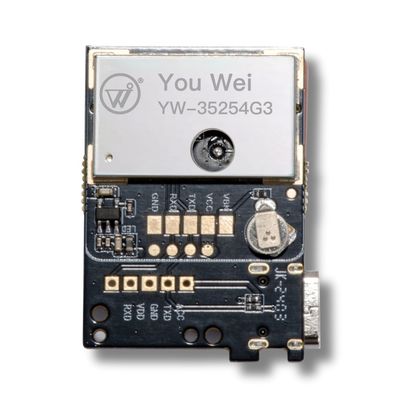

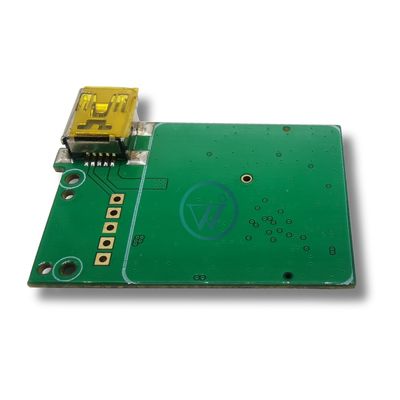

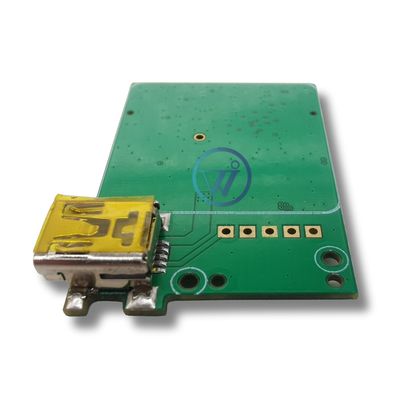

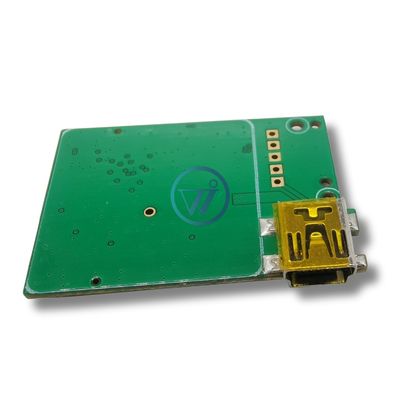

Product Images
Fast AGPS Supported GNSS GPS Module with Quick Positioning in Cold Start and High Sensitivity for Quick TTFF in Challenging Conditions 0
Fast AGPS Supported GNSS GPS Module with Quick Positioning in Cold Start and High Sensitivity for Quick TTFF in Challenging Conditions 1
Fast AGPS Supported GNSS GPS Module with Quick Positioning in Cold Start and High Sensitivity for Quick TTFF in Challenging Conditions 2
Fast AGPS Supported GNSS GPS Module with Quick Positioning in Cold Start and High Sensitivity for Quick TTFF in Challenging Conditions 3
Additional Information
  • White label service available
  • Packing options: Tray/Reel/Tube
  • Origin: China
