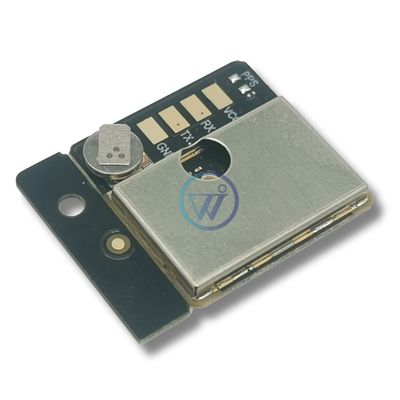

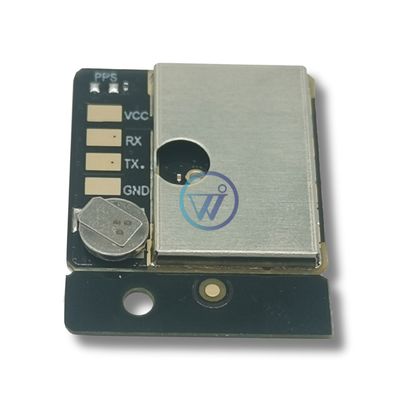

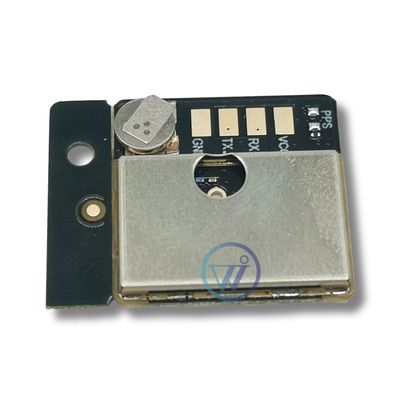

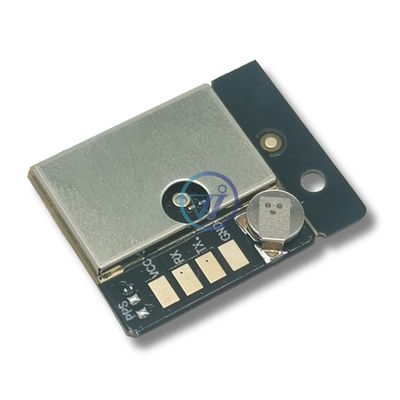

Vehicle Grade GNSS GPS Module with 3.3V~5V DC and 12 Months Warranty for Telematics and Fleet Tracking

Vehicle Grade GNSS GPS Module with 3.3V~5V DC and 12 Months Warranty for Telematics and Fleet Tracking

Vehicle Grade GNSS GPS Module with 3.3V~5V DC and 12 Months Warranty for Telematics and Fleet Tracking

Model Number:	YW-18184G3
MOQ:	100
Price:	$3.20-4

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Dimensions:

18*18*4

Sensitivity:

Tracking: -165dBm To -162dBm

Cold Start Time:

≤29s

Hot Start Time:

≤1s

Operating Voltage:

3.3V~5V DC

Power Consumption:

<25mA (Tracking)

Communication Interface:

I2C, USB, SPI, Uart

Antenna Type:

Patch Ceramic

Operating Temperature:

-40°C ~ +85°C

Positioning Accuracy:

Standard: 2.5m (SBAS) / 5m (autonomous)

Update Rate:

1Hz (default), 5Hz/10Hz (navigation), 20Hz/50Hz (drone/racing)

TTFF:

Cold Start: ≤30s, Hot Start: ≤1s, A-GPS Assisted: ≤5s

Data Interface:

UART (9600/115200 Bps), I2C/SPI, USB 2.0/3.0, CAN Bus (automotive)

Protocols:

NMEA 0183 (default), UBX (u-blox Binary), RTCM 3.x (RTK)

Antenna Gain:

Standard: 28dB, High-gain: 35dB (for Weak Signals)

Highlight:

Vehicle Grade GNSS GPS Module

,

3.3V~5V DC GPS Module

,

12 Months Warranty Telematics GPS Module

Product Description

Vehicle Grade GNSS GPS Module with CAN Bus Interface

Youwei GPS Module Ordering Options

Core Specifications

Option Category	Available Choices
Satellite Systems	GPS (L1 C/A) GPS + GLONASS GPS + Galileo GPS + BeiDou Multi-constellation (All systems)
Positioning Accuracy	Standard: 2.5m (SBAS) / 5m (autonomous) High-Precision: <1m (RTK/PPK) Sub-meter (with DGPS)
Channels	72 channels or customized

Performance & Sensitivity

Option Category	Available Choices
Update Rate	1Hz (default) 5Hz/10Hz (navigation) 20Hz/50Hz (drone/racing)
TTFF	Cold start: ≤30s Hot start: ≤1s A-GPS assisted: ≤5s
Sensitivity	Tracking: -165dBm to -162dBm Acquisition: -148dBm to -160dBm

Interfaces & Communication

Option Category	Available Choices
Data Interface	UART (9600/115200 bps) I2C/SPI USB 2.0/3.0 CAN bus (automotive)
Protocols	NMEA 0183 (default) UBX (u-blox binary) RTCM 3.x (RTK)
Wireless Connectivity	Bluetooth/BLE Wi-Fi 4G LTE (with GNSS+cellular modules)

Power & Environmental

Option Category	Available Choices
Operating Voltage	3.3V (low-power) 5V (industrial) Wide range: 2.7V-5.5V
Power Consumption	Active: 25mA-50mA Sleep: <1mA Supercapacitor backup (optional)
Temperature Range	Commercial: -20°C to +70°C Industrial: -40°C to +85°C Automotive: -40°C to +105°C

Antenna Options

Option Category	Available Choices
Antenna Type	Passive ceramic patch (embedded) Active external (SMA/FAKRA) Magnetic mount
Antenna Gain	Standard: 28dB High-gain: 35dB (for weak signals)

Certifications & Compliance

Option Category	Available Choices
Certifications	FCC/CE/RoHS

Additional Features

Option Category	Available Choices
Data Logging	Built-in flash (4MB-32MB) MicroSD slot
Firmware Upgrades	OTA (Wi-Fi/cellular) USB/UART local update
Special Functions	Geofencing Dead reckoning (DR) Anti-jamming (military-grade)

Vehicle Grade GNSS GPS Module with 3.3V~5V DC and 12 Months Warranty for Telematics and Fleet Tracking 0

Vehicle Grade GNSS GPS Module with 3.3V~5V DC and 12 Months Warranty for Telematics and Fleet Tracking 1

Vehicle Grade GNSS GPS Module with 3.3V~5V DC and 12 Months Warranty for Telematics and Fleet Tracking 2

Vehicle Grade GNSS GPS Module with 3.3V~5V DC and 12 Months Warranty for Telematics and Fleet Tracking 3

Vehicle Grade GNSS GPS Module with 3.3V~5V DC and 12 Months Warranty for Telematics and Fleet Tracking 4

Vehicle Grade GNSS GPS Module with 3.3V~5V DC and 12 Months Warranty for Telematics and Fleet Tracking 5

Vehicle Grade GNSS GPS Module with 3.3V~5V DC and 12 Months Warranty for Telematics and Fleet Tracking 6

Vehicle Grade GNSS GPS Module with 3.3V~5V DC and 12 Months Warranty for Telematics and Fleet Tracking 7

Vehicle Grade GNSS GPS Module with 3.3V~5V DC and 12 Months Warranty for Telematics and Fleet Tracking 8

Vehicle Grade GNSS GPS Module with 3.3V~5V DC and 12 Months Warranty for Telematics and Fleet Tracking 9

Vehicle Grade GNSS GPS Module with 3.3V~5V DC and 12 Months Warranty for Telematics and Fleet Tracking 10

Vehicle Grade GNSS GPS Module with 3.3V~5V DC and 12 Months Warranty for Telematics and Fleet Tracking 11

Vehicle Grade GNSS GPS Module with 3.3V~5V DC and 12 Months Warranty for Telematics and Fleet Tracking 12

Vehicle Grade GNSS GPS Module with 3.3V~5V DC and 12 Months Warranty for Telematics and Fleet Tracking 13
