Created with Pixso. Dual-Frequency GNSS GPS Module with L1+L5 Band for Centimeter-Level Positioning Accuracy and Customizable Interfaces
Dual-Frequency GNSS GPS Module with L1+L5 Band for Centimeter-Level Positioning Accuracy and Customizable Interfaces
  • name
  • name
  • name
  • name

Dual-Frequency GNSS GPS Module with L1+L5 Band for Centimeter-Level Positioning Accuracy and Customizable Interfaces

Model Number: YW-16164G3
MOQ: 100
Price: $4
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Dimensions:
16x16x4 Mm
Tracking Sensitivity:
-162 DBm
Locating Accuracy:
2.5m (CEP)
Update Rate:
1Hz~10Hz
Velocity:
515 M/s
Velocity Accuracy:
0.1m/s (unaided)
TTFF Hot Start:
1 Second
TTFF Warm Start:
28 Seconds
TTFF Cold Start:
30 Seconds
Acquisition Sensitivity:
-160 DBm
Cold Start Sensitivity:
-147 DBm
Baud Rate:
9600 Bps
Timing Accuracy:
25 Ns RMS
Power Supply:
3.3V ~ 5V
Power Consumption:
30mA (acquisition)
Working Temperature:
-40°C To 85°C
Antenna Type:
Patch Ceramic
Highlight:

L1+L5 Band GNSS Module

,

Dual-Frequency GPS Module

,

Centimeter-Level Accuracy Positioning Module

Product Description
YW-16164G3 Dual-Frequency GNSS GPS Module

High-precision L1+L5 band GNSS module delivering centimeter-level positioning accuracy for professional applications.

Key Specifications
Parameter Value
Part Number YW-16164G3
Chipset Configurable per order
Frequency Bands Dual-frequency L1+L5 (configurable)
Positioning Accuracy Customizable to centimeter-level
Maximum Velocity 515 m/s
Velocity Accuracy 0.1m/s (unaided), 0.05m/s (DGPS)
Time to First Fix (TTFF) Hot start: 1s, Warm start: 28s, Cold start: 30s
Sensitivity Tracking: -162 dBm, Acquisition: -160 dBm, Cold Start: -147 dBm
Default Baud Rate 9600 bps
Navigation Update Rate 1Hz (default), up to 10Hz
Timing Accuracy 25 ns RMS
Technical Features
  • Multiple Interfaces: UART, I2C, SPI, USB
  • Data Output: NMEA 0183 standard format
  • Power Supply: 3.3V ~ 5V operation
  • Low Power Consumption: 30mA (acquisition), 24mA (tracking)
  • Robust Design: -40°C to 85°C operating temperature
  • Compact Size: 16×16×4mm SMD package
  • Integrated Antenna: Patch ceramic antenna
  • AGPS Support: Enhanced positioning performance
Pin Configuration
Pin No. Pin Name I/O Description Remark
1 GND O Power output ground
2 VCC I Main power supply 3V~5V range
3 TX O Data output
4 VBAT P Ground

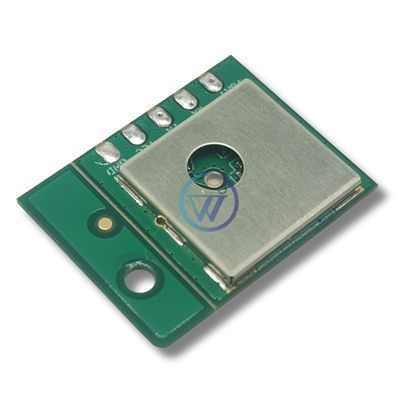

Product Images
Dual-Frequency GNSS GPS Module with L1+L5 Band for Centimeter-Level Positioning Accuracy and Customizable Interfaces 0 Dual-Frequency GNSS GPS Module with L1+L5 Band for Centimeter-Level Positioning Accuracy and Customizable Interfaces 1 Dual-Frequency GNSS GPS Module with L1+L5 Band for Centimeter-Level Positioning Accuracy and Customizable Interfaces 2 Dual-Frequency GNSS GPS Module with L1+L5 Band for Centimeter-Level Positioning Accuracy and Customizable Interfaces 3 Dual-Frequency GNSS GPS Module with L1+L5 Band for Centimeter-Level Positioning Accuracy and Customizable Interfaces 4
