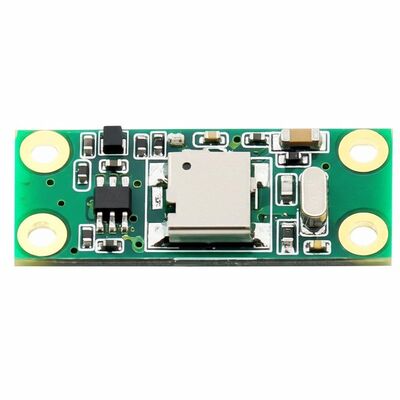

Product Description:

The GPS module is an advanced GNSS module designed to deliver precise and reliable positioning information for a wide range of applications. Featuring multi-constellation support with operating modes that include GPS, GLONASS, GALILEO, and BDS, this GNSS module ensures robust satellite coverage and enhanced accuracy even in challenging environments. By leveraging signals from multiple satellite systems, the module provides faster position fixes and improved performance in urban canyons, dense forests, and other areas where satellite visibility might be limited.

At the heart of this GPS module lies the highly efficient YW chipset, which is engineered to optimize signal processing and power consumption. The YW chipset enables the GNSS module to achieve high sensitivity and quick acquisition times, making it ideal for applications requiring real-time and continuous positioning data. This chipset also supports advanced positioning algorithms, contributing to the overall accuracy and reliability of the module.

One of the key features of this GNSS module is its update rate of 5 Hz, allowing it to provide position updates five times per second. This high update rate is particularly beneficial for dynamic applications such as automotive navigation, drones, and sports tracking, where real-time position information is crucial. The rapid update frequency ensures smooth and accurate tracking of movement, enabling users to make timely decisions based on precise location data.

In addition to supporting multiple satellite constellations, the module operates in A-GNSS (Assisted GNSS) mode. A-GNSS enhances the startup performance of the GPS module by utilizing assistance data from external sources such as cellular networks or Wi-Fi. This results in significantly reduced Time to First Fix (TTFF), allowing devices to acquire satellite signals and determine their position more quickly than standalone GPS modules. The A-GNSS positioning mode is especially advantageous in urban environments where satellite signals may be obstructed or weak.

The GPS module is designed to withstand acceleration forces up to a maximum of 4G, making it suitable for use in a variety of demanding conditions. Whether deployed in high-speed vehicles, industrial machinery, or sports equipment, the module maintains stable and accurate positioning performance even under significant motion and vibration. This durability ensures that the GNSS module can be trusted in both professional and consumer applications where reliability is paramount.

With its comprehensive feature set, the GPS module is well-suited for integration into a multitude of products and systems. Its multi-constellation operating mode, high update rate, and A-GNSS capabilities make it an excellent choice for applications such as fleet management, asset tracking, personal navigation devices, wearable technology, and unmanned aerial vehicles. The module’s compact design and efficient chipset also facilitate easy integration into space-constrained environments without compromising performance.

In summary, this GNSS module combines the strengths of GPS, GLONASS, GALILEO, and BDS satellite systems with the power of the YW chipset to provide a reliable, accurate, and fast positioning solution. Its 5 Hz update rate and A-GNSS positioning mode ensure timely and precise location data, while its ability to endure up to 4G acceleration makes it robust enough for demanding applications. Whether you are developing navigation systems, tracking devices, or other location-based technologies, this GPS module offers the performance and versatility needed to meet and exceed your GNSS requirements.

Features:

• Product Name: GPS Module
• Chipset: YW
• Data Format: NMEA 0183
• Operating Supply Voltage: 1.65 V To 3.6 V
• Receiver Type: GPS/QZSS L1 C/A GLONASS L1
• Storage Temperature: -40℃ To 85℃
• Compact design ideal for use as a mini GPS module
• High sensitivity GNSS module supporting multiple satellite systems
• Reliable GPS module for accurate positioning and navigation

Technical Parameters:

Applications:

The Youwei YW1616 mini GPS module is an advanced GNSS module designed to deliver precise and reliable positioning data in a variety of application occasions and scenarios. Originating from China and certified with FCC and CE, this GPS module is ideal for integration into compact and space-constrained devices due to its mini size and high performance.

One of the most common application scenarios for the Youwei YW1616 mini GPS module is in automotive navigation systems. Its high update frequency ranging from 0.25Hz to 10Hz (default 1Hz) and a default update rate of 5 Hz allow for real-time tracking and accurate route guidance. This makes it perfect for use in car GPS devices, fleet management systems, and vehicle tracking solutions where timely location updates are crucial.

Besides automotive applications, the GNSS module finds extensive use in wearable technology such as smartwatches and fitness trackers. The compact design of the mini GPS module enables it to be integrated seamlessly without compromising on device size or battery life. Its broad storage temperature range from -40℃ to 85℃ ensures reliable operation in various environmental conditions, from extreme cold to high heat, making it suitable for outdoor sports and adventure activities.

Another significant application occasion is in unmanned aerial vehicles (UAVs) or drones. The Youwei mini GPS module’s quick update rate and accurate positioning data are essential for drone navigation, flight path planning, and precise geotagging of aerial imagery. The module’s efficient regeneration rate from 0.25 to 10 Hz supports continuous and stable positioning required during flight.

Additionally, the Youwei YW1616 GPS module can be utilized in asset tracking and personal safety devices. Its mini size allows manufacturers to embed it into compact tracking tags, enabling real-time location monitoring of valuable assets or individuals. With a supply ability of 100,000 units per month, Youwei ensures that large-scale deployments are feasible for commercial applications.

The product is packaged carefully in Cartos to ensure safe delivery, with a typical delivery time of 5-7 days. Customers can order with a minimum quantity of 100 units and benefit from flexible payment terms including T/T and PayPal. Priced competitively between $3.5 and $5.5 per unit, the Youwei YW1616 mini GPS module offers excellent value for developers seeking a reliable and certified GNSS solution.

In summary, the Youwei YW1616 mini GPS module is a versatile and robust GNSS module suited for automotive navigation, wearable devices, drones, and asset tracking. Its combination of compact size, high update frequency, wide temperature tolerance, and reliable certification makes it an excellent choice for a broad range of precise positioning applications.

Support and Services:

Our GPS Module is designed to provide accurate and reliable positioning information for a variety of applications. For technical support, please ensure you have the product model number and serial number ready when seeking assistance.

We offer comprehensive technical support services including installation guidance, troubleshooting, firmware updates, and performance optimization. Our support team is equipped to help you with integration into your existing systems and resolving any operational issues.

In addition to technical support, we provide detailed user manuals, application notes, and software resources to help you get the most out of your GPS Module. Regular firmware updates are released to enhance functionality and fix any known issues.

For warranty information and repair services, please refer to the warranty policy included with your product. We strive to ensure customer satisfaction and reliable product performance throughout the lifecycle of the GPS Module.
