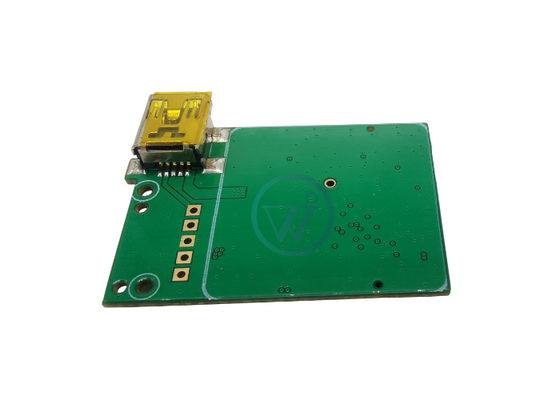

GPS GNSS Module With Antenna

Name: GPS GNSS Module With Antenna
Brand: Shenzhen Youwei Communication Co., Ltd.
SKU: YW-35254Z1
Price: 3.50 USD
Availability: InStock

Brand Name:	YOUWEI
Model Number:	YW-35254Z1
MOQ:	100
Price:	USD 3.5-4.5 UNIT
Delivery Time:	5-7 working days
Payment Terms:	T/T, Western Union, MoneyGram, D/A, L/C,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE FCC RoHS

Product Name:

Auto Positioning Module

Brand Name:

Youwei

Model No.:

YW-35254Z1

Typical Application:

Tracking , Positioning, Locating

Tracking Accuracy:

2.5m

TTFF Hot Start Time:

Baud Rate:

9,600 Bps (Default)

Interface Type:

UART, I2C, SPI, USB, CAN Etc.

Package:

SMD

Product Dimension:

35*25*4mm

Packaging Details:

Tray/Carton

Supply Ability:

200000pcs

Highlight:

GNSS Module for Cruise Tracking

GNSS Module for Cargo Vessel

GPS GNSS Module with Antenna

Product Description

Product Highlights

High-Precision Positioning

Centimeter-to-meter level accuracy with multi-constellation support (GPS/GLONASS/Galileo/BeiDou).

Ultra-Low Power Consumption

Optimized power management for extended battery life (e.g., <1mA in sleep mode).

Standard Data Output

NMEA 0183 compliant protocols, with customizable message formats.

Versatile Interface Options

Supports UART, I2C, SPI, USB, and CAN bus for flexible integration.

Wide Voltage Range Operation

Compatible with 2.7V–5.5V inputs, ideal for industrial and battery-powered applications.

Compact and Lightweight Design

Miniaturized form factor (e.g., 12mm × 16mm) for space-constrained installations.

Plug-and-Play Connectivity

Standardized connectors (e.g., JST, SMA) for effortless deployment.

Multi-Scenario Adaptability

Ruggedized for drones, vehicles, wearables, and IoT devices (-40°C to +85°C rated).

Customization-Ready

Tailored firmware, antenna designs, and housing options upon request.

Parameters of YW-16162G3 Global Positioning System Module

Item	Parameters
Part No.	YW-35254Z1
Chip	As per order
Frequency	L1
Number of Channels	As per order requirements
Positioning Accuracy	2 to 5meters
Velocity	515 m/s
Velocity Accuracy	Without aid : 0.1m/s DGPS: 0.05m/s
TTFF	Hot start: 1 second typical Warm start: 28 seconds typical Cold start: 30 seconds typical
Sensitivity	Tracking Sensitivity: -162 dBm Acquisition Sensitivity: -160 dBm typical Cold Start:-147dBm
Baud Rate	9600 bps (default) or customized
Navigation Update Rate	1Hz (default), maximum 10Hz
Timing Accuracy	25 ns RMS
Interface Options	UART, I2C, SPI, USB, CAN
Data Output Format	NMEA 0183
Power Supply	3V ~ 5V
Working Temperature Range	-40°C to 85°C
Antenna Type	patch ceramic antenna
AGPS	Supported
Dimension	35254mm
Package Type	SMD
Origin Place	China
Export Packing	Tray/Carton

GPS Module Customization Service Process

1. Embedded Software Development

Step	Process Description	Key Activities
1	Requirements Analysis	Define functional specs (e.g., AT commands, protocols).
2	Dev Environment Setup	Configure IDE/toolchain (e.g., Keil, GCC).
3	Algorithm Optimization	Enhance positioning accuracy/power efficiency.
4	Protocol Integration	Add TCP/UDP or custom communication protocols.
5	Driver Development	Hardware-software compatibility testing.
6	Maintainability Design	Modular code architecture for future upgrades.

Deliverables: SDK package, AT command documentation, test reports.

2. APP & Web Development

Step	Process Description	Key Activities
1	Requirement Finalization	Confirm features (e.g., geofencing, alerts).
2	UI/UX Design	Cross-platform responsive design (iOS/Android/Web).
3	API & Backend Development	RESTful APIs, database design (PostgreSQL/MongoDB).
4	Security Implementation	Data encryption (AES-256), OAuth 2.0 authentication.
5	Performance Tuning	Server load balancing, latency optimization.
6	Deployment & Testing	AWS/Azure deployment, stress testing (JMeter).

Deliverables: Mobile apps (APK/IPA), admin dashboard, API documentation.

3. PCBA Turnkey Manufacturing

Step	Process Description	Key Activities
1	Design Review	Schematic/PCB layout validation (Altium/Cadence).
2	Rapid Prototyping	24-72hr PCB fabrication (4-6 layer options).
3	Component Sourcing	BOM procurement with OEM/ODM partners.
4	SMT Assembly	High-precision pick-and-place.
5	Functional Testing	In-circuit test (ICT), firmware flashing.
6	Quality Assurance	Burn-in testing, RoHS/REACH compliance checks.

Deliverables: Tested PCBA units, compliance certificates, assembly logs.

4. GPS Hardware Customization

Step	Process Description	Key Activities
1	Mechanical Design	Custom housing/antenna (3D modeling with SolidWorks).
2	RF Optimization	LNA circuit tuning, impedance matching.
3	Environmental Testing	Thermal cycling (-40°C to +85°C), vibration tests.
4	Signal Validation	Anechoic chamber testing, multi-constellation SNR analysis.
5	Mass Production	DFM review, mold/tooling fabrication.

Deliverables: 3D design files, RF test reports, production jigs.

End-to-End Collaboration
Bilingual Support: Dedicated project managers with technical translators.
Agile Milestones: Bi-weekly sprints with demo sessions.
Post-Sales: OTA update portal, RMA process for hardware.
