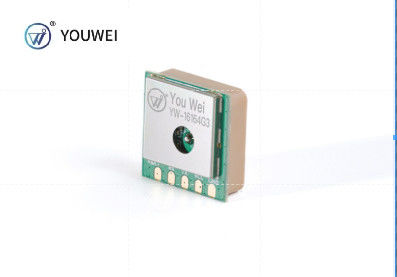

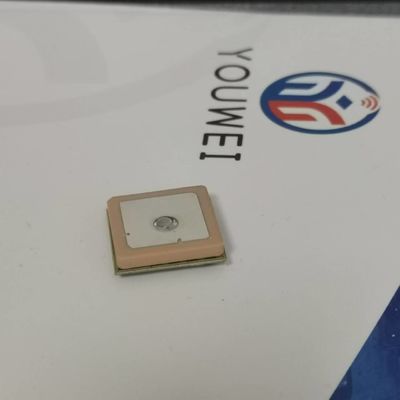

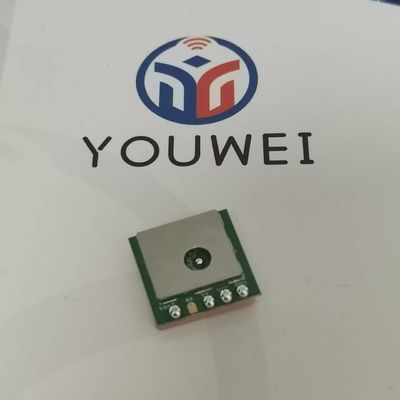

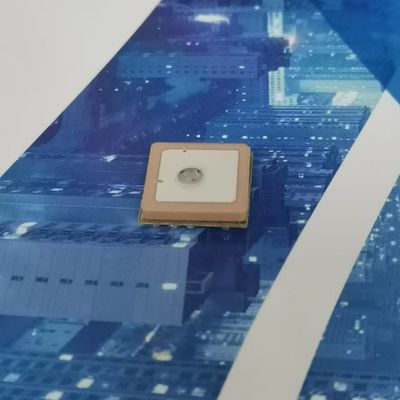

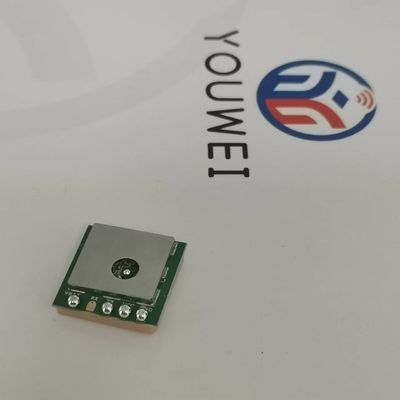

3.3V Scalability High Precision Gnss Module For UAV Navigation

Name: 3.3V Scalability High Precision Gnss Module For UAV Navigation
Brand: Shenzhen Youwei Communication Co., Ltd.
SKU: YW-16164G3
Price: 42.00 USD
Availability: InStock

Brand Name:	YOUWEI
Model Number:	YW-16164G3
MOQ:	300

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE Rohs

Type:

GNSS Module

Country Of Origin:

China

Brand:

Youwei

Chipset:

GK-9501

Application:

Gnss Module

Product Name:

YOUWEI

Chip:

YW-16164G3

Payment:

Paypal\TT\Western Union\Trade Assurance

Feature:

Band

D/C:

Newest

Battery:

Internal Back-up Battery

Operating Temperature Range:

-40 To 85℃C

Description:

GNSS Module

Cetificate:

ISO9001,FCC,CE

Supply Voltage:

3.3V

Packaging Details:

Hard box packaging size

Supply Ability:

10000

Highlight:

Scalability High Precision Gnss Module

3.3V High Precision Gnss Module

3.3V ublox rtk gps module

Product Description

Advanced GNSS Module For High-Performance Positioning And Navigation

1.1 Product Name

YW-16164G3

1.2 Product Description

Featuring a single die solution, low power consumption and low costs, the YW-16162G3 are multi

Beidou ,positioning Module developed to meet the requirements of an extensive range of applications and

end-products. Based on the high performance GK9501 position engine,these receivers provide exceptional

sensitivity and acquisition times and interference suppression measures enable reliable positioning even in

difficult signal conditions.

1.3 Product Features

• Build on high performance GNSS single chip GK9501

• 72 channels in Search mode

• cold start acquisition sensitivity of -147 dBm and -162 dBm tracking sensitivity

• up to 5Hz navigation update rate

• Supports any two of Beidou,SBAS simultaneously by firmware support

• Integrated TCXO,LNA,SAW,RTC

• Compact size (16mm*16mm.*4.7mm(±0.1) ) suitable for space-sensitive application

• Support standard NMEA

1.4 Product Application

• Handheld BD receiver application

• Automotive application

• Ideal for PDA, Pocket PC

• Car navigation and tracking

• Geographic Surveying

• AVL and Location-Based Services

• Sports and Recreation

• Timing application

• Marine Navigation, Fleet Management

• UAV
