products details

Home Products

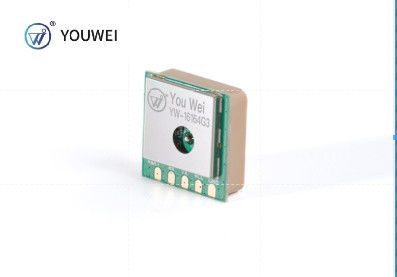

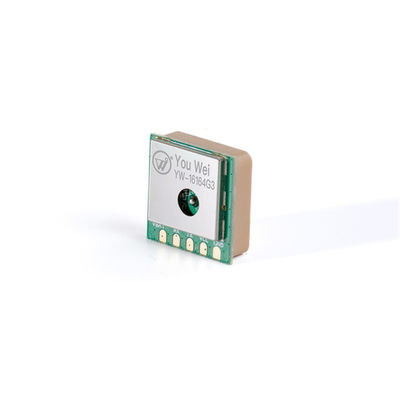

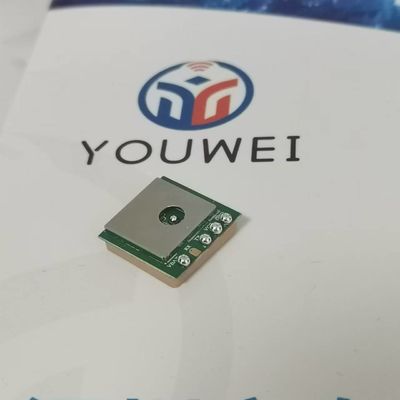

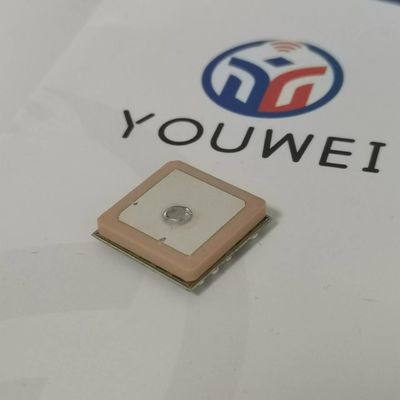

High Performance Gps Tracking Module GNSS Module For Accurate Positioning And Navigation

Name: High Performance Gps Tracking Module GNSS Module For Accurate Positioning And Navigation
Brand: Shenzhen Youwei Communication Co., Ltd.
SKU: YW-16164G3
Price: 42.00 USD
Availability: InStock

Brand Name:	YOUWEI
Model Number:	YW-16164G3
MOQ:	100
Delivery Time:	5-7 WORK DAY
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE Rohs

Type:

GNSS Module

Country Of Origin:

China

Brand:

Youwei

Chipset:

YW-16164G3

Application:

Gnss Module

Product Name:

GNSS Module

Chip:

YW-16164G3

Payment:

Paypal\TT\Western Union\Trade Assurance

Feature:

Band

D/C:

Newest

Battery:

Internal Back-up Battery

Operating Temperature Range:

-40 To 85℃C

Description:

GNSS Module

Cetificate:

ISO9001,CE,FCC

Packaging Details:

Hard box packaging size

Supply Ability:

10000

Highlight:

High Performance Gps Tracking Module

High Performance GPS Tracking Device

low power Gps Tracking Module

Product Description

High-Performance And GNSS Module For Accurate Positioning And Navigation

1 GNSS module before the SMT note:

1.1 When customers Open stencil must be sure the hole bigger to the GNSS module plate, please press 1 to 1 and 0.7 mm is widened

to open outward, the thickness of 0.12 mm.

1.2 Can't get the GNSS module bare hands when needs,must we wear the gloves and static ring.

1.3 The furnace temperature according to the size of the customer the mainboard ,generally like to stick on a tablet standard

temperature of 250 + - 5,can do 260 + - 5.

2 Storage and use GNSS module control should pay attention to the following matters:

2.1 Storage life:12 months. Storage conditions:<40℃. Relative humidity:<90%R.H.

2.2 After this bag is opened , devices that will be subjected to infrared reflow, vapor-phase reflow, or equivalent processing must be :

2.3 Check the humidity card :stored at ≦20%RH.If :30%~40%(pink)or greater than 40%(red).Labeling module has moisture absorption.

2.4 Mounthed within 168 hours at factory conditions of: t≦30%℃,≦60%R.H.

2.5 Once opened, the workshop the preservation of life for 168 hours.

3 If baking is required,devices may be baked for:

3.1 Modules must be to remove module moisture problem.

3.2 Baking temperature: 125 ℃, 8 hours.

3.3 After baking, put proper amount of desiccant to seal packages.

4 The actual number of module vacuum packing which is based on the actual number of packages to the customer

requirements.

5 Module reel packaging items as follows.

5.1 Storage life:12 months. Storage conditions:<40℃. Relative humidity:<90%R.H.

5.2Module apart packing after 168 hours,To launch patch need to bake, to remove the module hygroscopic, baking temperature

conditions:125℃,8hours.

5.3 The actual number of module reel packing which is based on the actual number of packages to the customer requirements.

6 Module pallet packaging items as follows:

6.1 Storage life:3 months. Storage conditions:<40℃. Relative humidity:<90%R.H.

6.2 Module if not used within 48 hours, before launch the need for baking, baking temperature: 125 ℃, 8 hours.

6.3 Pallet packaging each plate is 100 PCS.The actual number of module pallet packing which is based on the actual number of packages to the customer requirements.

Product Description

_{Model Number}	YW-16164G3
_Type	_{integrated circuit}
_{Place of Origin}	_China
_D/C	_New
_Description	_{GNSS module}
_Name	_{YOUWEI High Performance Low Price GPS Module}
_{support walk model}	_yes
_{High sensitivity}	_-162dBm
_{Operating temperature range}	_{-40 to 85°C}
_Battery	_{Internal back-up battery}
_{Low Power}	_25MA
_{Timing (PPS)}	_{10ns RMS}
